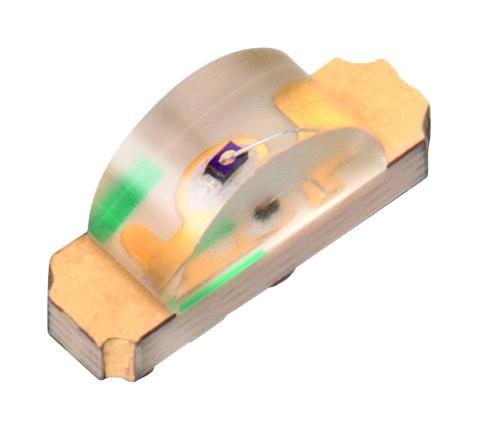

WURTH ELEKTRONIK 155060GS73200 Surface-Mount Green LED
The WL-SMSW SMT Mono-color Side is a waterclear, water-soluble LED component designed for surface-mount applications. It features InGaN chip technology emitting green light with a peak wavelength of 520 nm and a dominant wavelength of 525 nm. The device operates at a forward current of 20 mA with a forward voltage ranging from 3.3 to 3.9 V. It is RoHS and REACH compliant, suitable for high-reliability electronics, and includes protection against electrostatic discharge up to 4000 V. Ideal for indicator lights, illumination, and backlighting in various electronic products, it is designed for easy integration with waterclear lenses and low power dissipation, making it a versatile choice for modern surface-mount designs.
WURTH ELEKTRONIK 155060GS73200 Surface-Mount Green LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Green
- Peak Wavelength: 520 nm
- Dominant Wavelength: 525 nm
- Luminous Intensity: 110 to 360 mcd at 20 mA
- Forward Voltage: 3.3 to 3.9 V at 20 mA
- Spectral Bandwidth: 30 nm
- Reverse Current (at 5V): 10 μA
- Viewing Angle: 120°
- Peak Forward Current: 30 mA at duty cycle 10% (1 kHz)
- Power Dissipation: 78 mW
- Operating Temperature Range: -40 to +85°C
- Storage Conditions: < 40°C / < 90% RH in original packaging, or 40 to +100°C for single units
- Moisture Sensitivity Level: 3
- ESD Threshold: 4000 V
Buy the Wurth Series SMT Green LED: 155060GS73200
Buy the Wurth Series SMT Green LED 155060GS73200 online today and enhance your electronic designs with high brightness and low power consumption. This waterclear, surface-mount LED features InGaN chip technology, emitting vibrant green light with excellent spectral and optical properties. Designed for easy integration, it offers a wide viewing angle, high reliability, and compliance with RoHS and REACH standards. Perfect for indicators, backlit panels, and illumination in a variety of electronic projects, ensuring superior performance and durability.
Order your Wurth Series SMT Green LED 155060GS73200 today and give your projects the dependable quality they deserve for reliable optical performance.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 155060GS73200?
You can click on the BUY or RFQ button to purchase 155060GS73200 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 155060GS73200?
You can download the 155060GS73200 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 155060GS73200?
WURTH ELEKTRONIK
