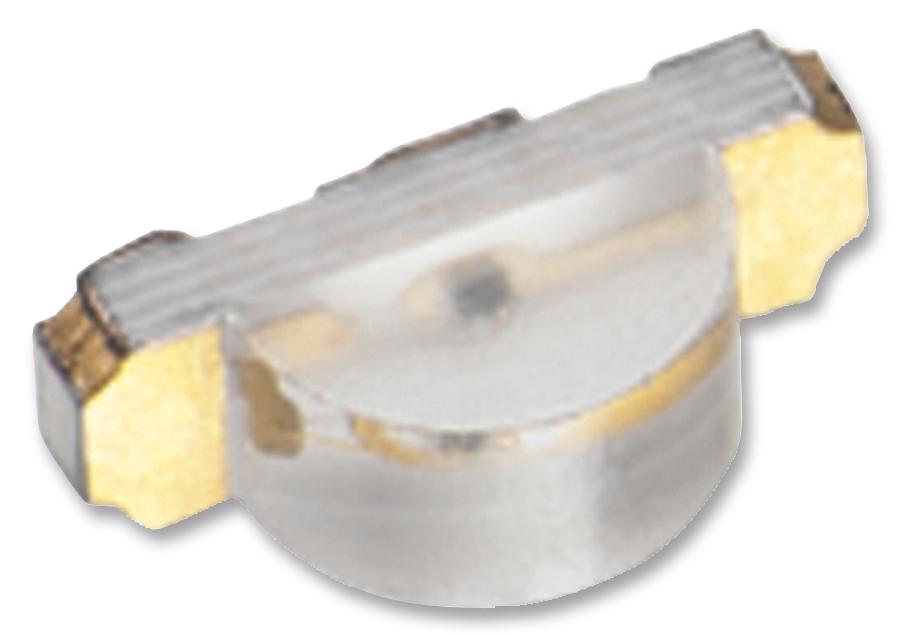

WURTH ELEKTRONIK 155124GS73200 Mono-color Side View LED
The WURTH ELEKTRONIK 155124GS73200 is a miniature, side-view LED designed for SMT assembly. This LED offers a compact footprint and a wide viewing angle, making it ideal for applications such as indicator lights, backlighting, and displays. It is RoHS compliant and operates within a temperature range of -40°C to +85°C. The LED's InGaN chip technology ensures efficient light emission and a vibrant green color. It is not intended for use in safety-critical applications.
WURTH ELEKTRONIK 155124GS73200 Mono-color Side View LED Specifications:
- Dimensions: 3.2 ±0.2 mm, 1.0 ±0.2 mm, 0.5 ±0.15 mm, 1.5 ±0.2 mm, 2.0 ±0.2 mm
- Polarity Mark: Cathode: 0.6 typ.
- Reinforcing Pin: 1, 2
- Recommended Land Pattern: 0.6, 0.9, 0.8, 1.0, 1.0, 2.0, 2, 1
- Power Dissipation: 95 mW
- Peak Forward Current: 100 mA (duty/ 10 @ 1 kHz)
- Continuous Forward Current: 25 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body: 400 V
- Emitting Color: Green
- Lens Type: Round
- Operating Temperature: -40 up to +85 °C
- Storage Conditions in Original Packaging: < 40 °C ; < 90 % RH
- Storage Conditions for Single Parts: -40 up to +85 °C
- Moisture Sensitivity Level MSL: 3
- Peak Wavelength: 520 nm
- Dominant Wavelength: 525 nm
- Luminous Intensity: 360-600 mcd
- Forward Voltage: 3.3-4 V
- Spectral Bandwidth: 35 nm
- Reverse Current: 10 µA
- Viewing Angle: 120°
