WURTH ELEKTRONIK 156120BS82500 Blue LED
This is a reverse mount waterclear monochrome LED with blue emission color, dome lens type, and a viewing angle of 20°. It features a peak wavelength of 465 nm at 20 mA, a forward voltage between 3.2 and 3.9 V, and a luminous intensity ranging from 360 to 700 mcd. Designed for smooth soldering with specific reflow profile parameters, it includes absolute maximum ratings and thermal properties suitable for various electronic applications, providing high reliability and effective optical performance in LED indicator and display uses.
WURTH ELEKTRONIK 156120BS82500 Blue LED Specifications:
- Emission Color: Blue
- Lens Type: Dome
- Viewing Angle: 20°
- Peak Wavelength: 465 nm at 20 mA
- Dominant Wavelength: 470 nm
- Luminous Intensity: 360 to 700 mcd at 20 mA
- Forward Voltage: 3.2 to 3.9 V at 20 mA
- Spectral Bandwidth: 40 nm
- Reverse Voltage: 5 V
- Operating Temperature Range: -40 °C to +85 °C
- Storage Temperature: -40 °C to +85 °C
- Maximum Power Dissipation: 78 mW
- Peak Forward Current: 60 mA
- Continuous Forward Current: 20 mA
- ESD Threshold: 1000 V
- Flip-chip Technology: InGaN
- Soldering Profile: Preheat 150°C-200°C, max 60-120 sec, Ramp-up max 3°C/sec, Peak temperature 260°C, max 2 cycles.

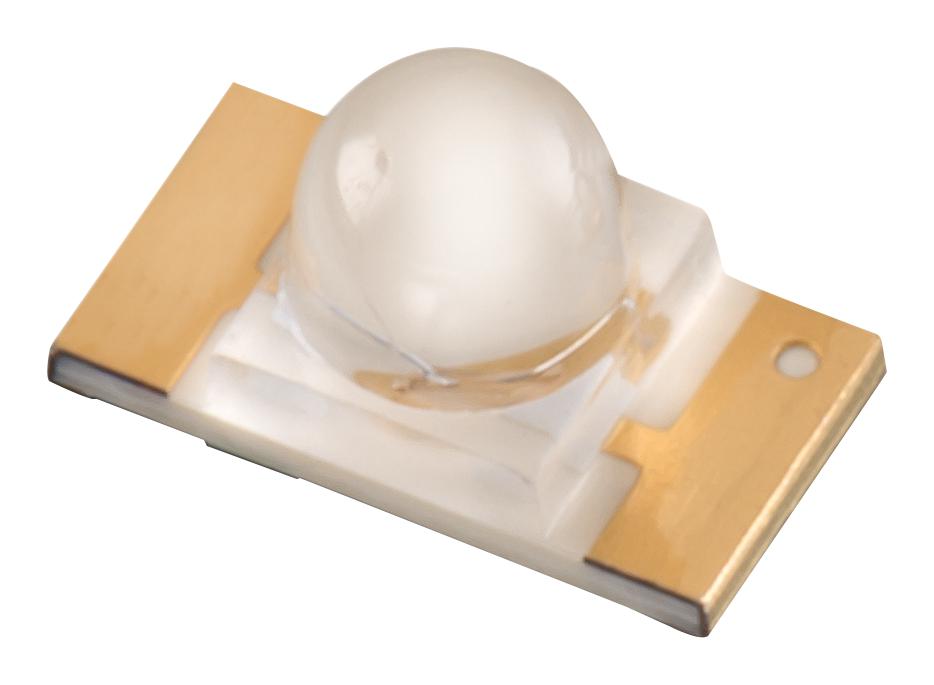

Buy the Buy Wirth Elektronik SMD Mono-color Part Number 156120BS82500 Online
Purchase the Wirth Elektronik Series156120BS82500 blue LED online today to ensure top-quality illumination for your electronic and display projects. This reverse mount, waterclear LED with a dome lens provides excellent optical performance, a wide viewing angle, and reliable operation across a broad temperature range. Perfect for indicators, signage, and control panels, it guarantees superior brightness, longevity, and consistency. With fast worldwide shipping, competitive prices, and a trusted reputation, order now to elevate your electronic device’s visibility and functionality effortlessly.
Order your Wirth Elektronik Series156120BS82500 high-performance blue LED today and enhance your electronic projects with dependable, reliable lighting components.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156120BS82500?
You can click on the BUY or RFQ button to purchase 156120BS82500 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156120BS82500?
You can download the 156120BS82500 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156120BS82500?
WURTH ELEKTRONIK
