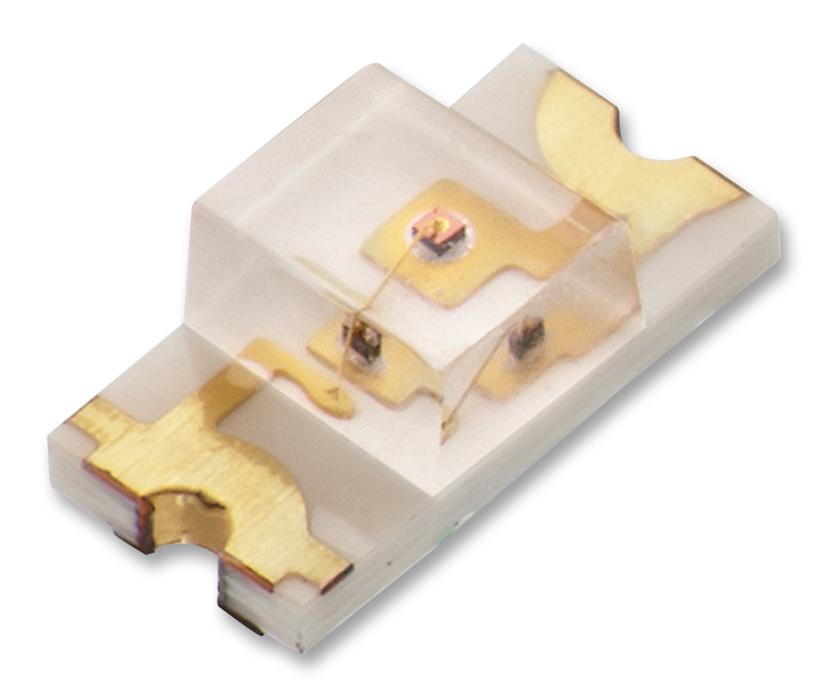

WURTH ELEKTRONIK 156120GS75000 SMD Green LED
This waterclear water-clear LED from Wurth Elektronik is a 1206 rectangular SMD chip designed for reverse mounting. It features InGaN technology, emits green light with a peak wavelength of 520 nm, and offers a viewing angle of 140°. Suitable for electronic equipment, it complies with RoHS and REACh standards, and has an operating temperature range of -40°C to +85°C. The LED’s mechanical design ensures reliable performance in various industrial and commercial applications, providing bright, energy-efficient illumination with a spectral bandwidth of 35 nm.
WURTH ELEKTRONIK 156120GS75000 SMD Green LED Specifications:
- Size: 1206 rectangular
- Technology: InGaN
- Color: Green
- Emission wavelength: Peak 520 nm, Dominant 525 nm
- Luminous intensity: 140 to 235 mcd at 20 mA
- Forward voltage: 33 to 40 V at 20 mA
- Spectral bandwidth: 35 nm
- Viewing angle: 140°
- Reverse current: 10 μA at 5V
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- Compliance: RoHS & REACh
- Max. reflow profile: Peak temperature 250°C, max duration 10s
- Soldering: Reflow profile with max. ramp-up 3°C/sec, max. ramp-down 6°C/sec.
Buy the Wurth Elektronik Series WL-SMRW Green LED: 156120GS75000
Purchase the high-quality Wurth Elektronik Series WL-SMRW Green LED online today. Featuring a 1206 rectangular SMD design, InGaN technology, and broad compatibility with industrial and electronic applications, this waterclear LED offers exceptional brightness, energy efficiency, and reliability. Its RoHS compliance and compliance with safety standards guarantee optimal performance in diverse environments. Easy to solder with specified reflow profiles, it is ideal for professionals seeking durable, high-performance illumination components that ensure long-term project success and compliance with industry standards.
Order your Wurth Elektronik Series WL-SMRW Green LED today and enhance your projects with our reliable energy-efficient lighting solutions.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156120GS75000?
You can click on the BUY or RFQ button to purchase 156120GS75000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156120GS75000?
You can download the 156120GS75000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156120GS75000?
WURTH ELEKTRONIK
