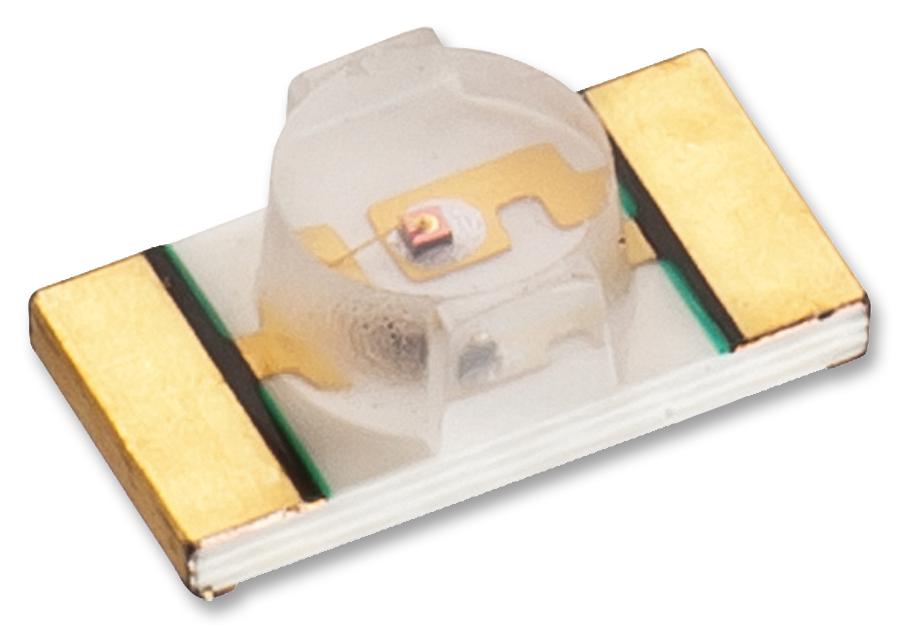

WURTH ELEKTRONIK 156120VS75300 Green SMT LED
This waterclear SMT diode is designed for reverse mounting in electronic circuits, offering high brightness green emission with a cylindrical lens type. It features a wavelength of approximately 573-575 nm, forward voltage of 2-2.4 V at 20 mA, and a viewing angle of 140°. The device complies with RoHS, REACH, and halogen-free standards, suitable for applications requiring high reliability and safety in signal indication or status lighting. Its compact size and precise electrical specifications make it ideal for automation, indicator, and control systems.
WURTH ELEKTRONIK 156120VS75300 Green SMT LED Specifications:
- Emission Color: Bright Green
- Wavelength: 573-575 nm (Peak 575 nm at 20 mA)
- Forward Voltage: 2-2.4 V (at 20 mA)
- Luminous Intensity: 18-30 millicandelas
- Viewing Angle: 140°
- Peak Wavelength: 575 nm
- Dominant Wavelength: 573 nm
- Reverse Current: 10 μA (at 5V)
- Max. Peak Forward Current: 100 mA (at duty cycle 10%, 1 kHz)
- Operating Temperature: -40°C to +85°C
- Soldering Profile: Max preheat temperature 200°C, max time 120 seconds, Ramp rate 3°C/sec
- Storage Conditions: -40°C to +85°C, 90% RH, moisture sensitive level 3
- Standards: RoHS 2011/65/EU, REACH, Halogen Free IEC 61249-2-21
Buy the Buy WURTH ELECTRONIK Green SMT LED Part Number 156120VS75300 Online
Order the WURTH ELECTRONIK Green SMT LED diode with part number 156120VS75300 online today. Featuring high brightness, a 140° viewing angle, and excellent thermal stability, this waterclear LED is ideal for indicator, automation, and control systems. Its compact design ensures easy installation and consistent performance in industrial and electronic applications. Be confident with RoHS, REACH compliance and halogen-free standards, making it suitable for safety-critical environments. Purchase now for reliable, long-lasting illumination in your electronic equipment.
Get WURTH ELECTRONIK 156120VS75300 today—designed for high brightness and reliable performance in electronic indicator applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156120VS75300?
You can click on the BUY or RFQ button to purchase 156120VS75300 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156120VS75300?
You can download the 156120VS75300 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156120VS75300?
WURTH ELEKTRONIK
