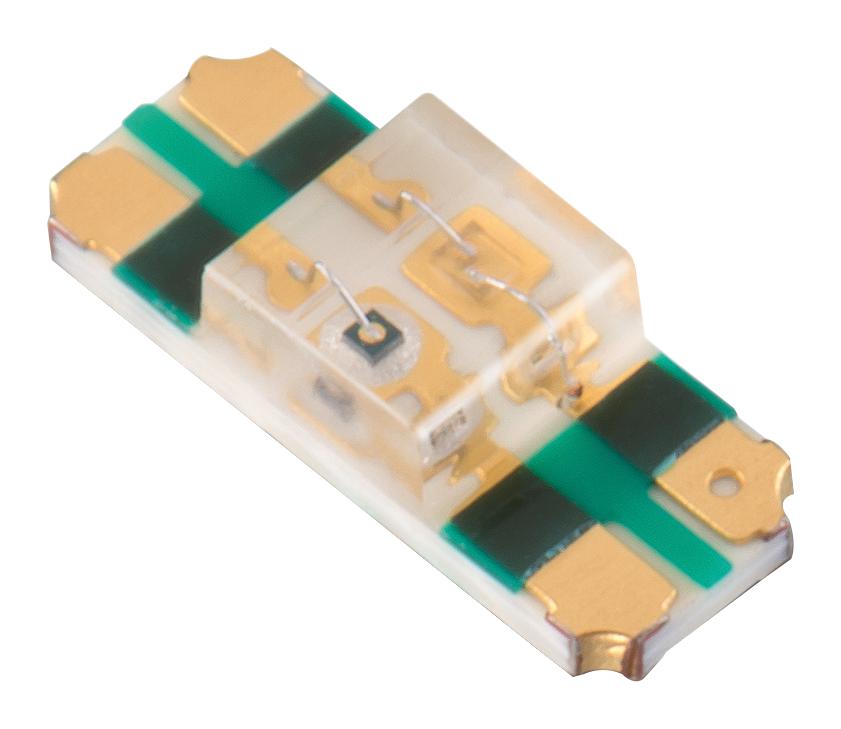

WURTH ELEKTRONIK 156125RV73000 Bi-color LED
The WL-SBRW SMD Bi-color Reverse is an advanced LED component featuring red and bright green emission colors with rectangular lenses, suitable for various electronic applications. It operates within -40°C to +85°C temperatures, with a human body static discharge voltage of 1000 V and peak forward currents of 40 mA duty cycle. Its optical properties include peak wavelengths of 632 nm for red and 573 nm for green, with luminous intensities of up to 110 med for red and 170 med for green at 20mA. Designed for surface-mount technology, it ensures reliable operation in demanding environments.
WURTH ELEKTRONIK 156125RV73000 Bi-color LED Specifications:
- Operating Temperature: -40°C to +85°C
- Peak Wavelength (Red): 632 nm; Bright Green: 573 nm
- Luminous Intensity (Red): 110 med; Green: 170 med at 20mA
- Forward Voltage (Red): 2.2 V; Green: 3.2 V
- Spectral Bandwidth (Red): 20 nm; Green: 12 nm
- Peak Forward Current: 40 mA (duty cycle/10 at 1kHz)
- Continuous Forward Current: 20 mA
- Reverse Voltage: 5 V
- View Angle: 120°
- Humidity: Max. 60% RH at 85°C storage
- Moisture Sensitive Level: MSL 3
- Lens Type: Rectangular
- Chip Technology: AllnGaP
- Absolute Maximum Ratings include Power Dissipation: 48 mW per color and Max. Peak Forward Current
- Electro-Optical Properties: Peak wavelengths, luminance, forward voltage, spectral bandwidth, reverse current, viewing angle, and spectral data are specified
- Mechanical and electrical characteristics meet industrial standards for SMT components with assembly profiles specified
Buy the Buy Wirth Elektronik SMD Bi-color Reverse Part Number 156125RV73000 Online
Purchase the Wirth Elektronik Bi-color LED part 156125RV73000 online to ensure quick delivery of high-quality red and green surface-mount LEDs. These components are ideal for electronic indicator and display solutions, operating efficiently within -40°C to +85°C temperatures, offering high luminous intensity, reliable forward voltages, and a wide viewing angle. Secure your supply of durable and efficient SMD bi-color LEDs with our easy online ordering system, providing technical support and fast shipping to meet your project needs.
Buy Wirth Elektronik 156125RV73000 now and experience unmatched reliability and performance in bi-color LED applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156125RV73000?
You can click on the BUY or RFQ button to purchase 156125RV73000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156125RV73000?
You can download the 156125RV73000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156125RV73000?
WURTH ELEKTRONIK
