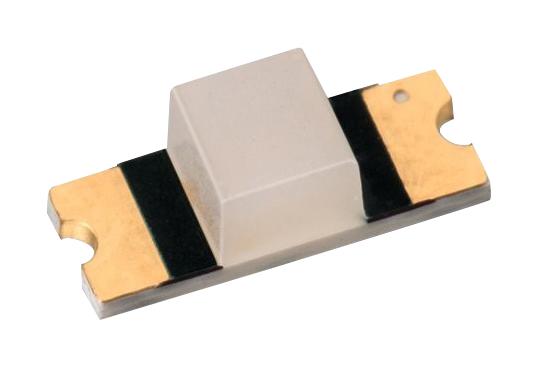

WURTH ELEKTRONIK 156125YS57000 Reverse Mount Diffused LED
This product is a reverse mount diffused monochrome LED designed for precise optical applications. It features AllnGaP chip technology emitting yellow light with a rectangular lens, suitable for various electronic and illumination solutions. The LED operates safely within -40°C to +85°C, ensuring durability in demanding environments. It complies with moisture sensitivity level MSL 3 standards and includes recommended soldering profiles for optimal performance. The device's electrical specifications include a forward voltage of 24V at 20mA, a reverse threshold of 5V, and peak wavelength at 501 nm, making it reliable for high-precision lighting applications.
WURTH ELEKTRONIK 156125YS57000 Reverse Mount Diffused LED Specifications:
- Chip Technology: AllnGaP
- Emitting Color: Yellow
- Lens: Rectangular
- Operating Temperature: -40°C to +85°C
- Peak Wavelength: 501 nm
- Dominant Wavelength: 589 nm
- Luminous Intensity: 45-70 mcd at 20mA
- Forward Voltage: 24V at 20mA
- Spectral Bandwidth: 20 nm
- Reverse Voltage Threshold: 5V
- Viewing Angle: 160°
- Moisture Sensitivity Level: MSL 3
- Soldering Profile: Preheat 150-200°C, Max 200°C, Max 60-120 sec, Ramp-up 3°C/sec, Max Peak Temp: 260°C
- Max Power Dissipation: 48 mW
Buy the Buy Wirth Elektronik Diffused Yellow LED Part Number 156125YS57000 Online
Purchase the Wirth Elektronik reverse mount diffused yellow LED online today for your electronic projects. With its AllnGaP chip technology, rectangular lens, and operating temperature of -40°C to +85°C, it offers excellent durability and brightness, making it suitable for high-precision lighting applications. This LED features a peak wavelength of 501 nm, forward voltage of 24V at 20mA, and a wide viewing angle of 160°, ensuring reliable performance and easy integration into various systems. Order now to ensure fast delivery and quality performance.
Buy Wirth Elektronik 156125YS57000 now and experience unmatched reliability and high-precision illumination in your electronic designs.
