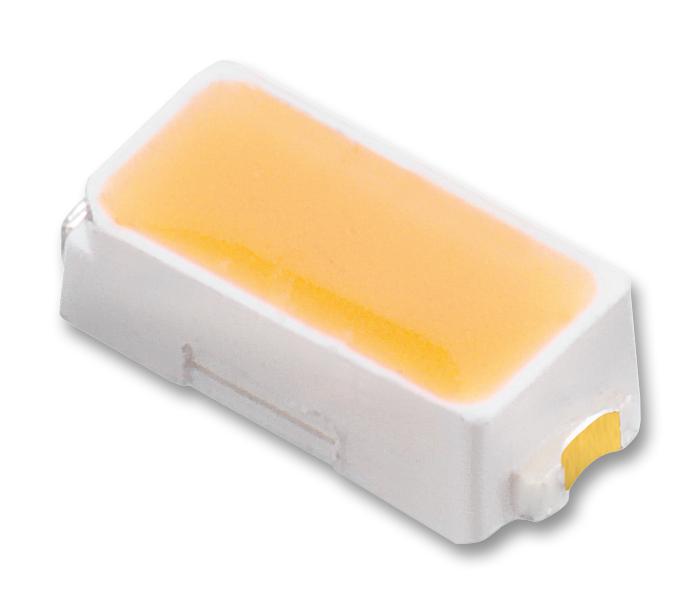

WURTH ELEKTRONIK 158301250 Daylight LED
The WL-SWTP SMD White Top View PLCC LED by Wurth Elektronik is an advanced daylight-emitting diode designed for general electronic equipment. Featuring a top LED lens type with InGaN chip technology, it offers a viewing angle of 120°, forward voltage of 3.0–3.5 V at 20 mA, and luminous flux of 8.0 lm. Operating within -40°C to +85°C, it’s suitable for various applications requiring reliable lighting solutions, with specifications including thermal resistance, maximum peak forward current of 40 mA, and maximum power dissipation of 105 mW. It is RoHS compliant and halogen-free.
WURTH ELEKTRONIK 158301250 Daylight LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Daylight
- Lens Type: Top LED
- Viewing Angle: 120°
- Forward Voltage: 3.0–3.5 V at 20 mA
- Luminous Flux: 8.0 lm at 20 mA
- Operating Temperature Range: -40°C to +85°C
- Peak Forward Current: 40 mA
- Power Dissipation: 105 mW
- Reverse Voltage: 5 V
- Maximum Thermal Resistance Junction to Solder: 38 K/W
- Absolute Maximum Junction Temperature: 130°C
- Thermal Resistance Junction to Ambient: Not specified
- Color Coordinates: x ≈ 0.3387, y ≈ 0.3459 at 20 mA
- RGB Index: High color rendering with CRI 80–85
- Certification: RoHS & Halogen-Free
Buy the Buy Wurth Elektronik LED Part Number 158301250 Online
Purchase the daylight LED with top lens type from Wurth Elektronik online today. This high-efficiency LED features InGaN chip technology, a 120° viewing angle, and luminous flux of 8 lumens. Operating seamlessly within -40°C to +85°C, it is ideal for general electronic lighting applications demanding high reliability, low power dissipation, and RoHS compliance. With a forward voltage of 3.0–3.5 V at 20 mA, it ensures consistent performance, durability, and safety for industrial and consumer electronics projects.
Get Wurth Elektronik LED Part Number 158301250 today—built for reliable illumination, efficiency, and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 158301250?
You can click on the BUY or RFQ button to purchase 158301250 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 158301250?
You can download the 158301250 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 158301250?
WURTH ELEKTRONIK
