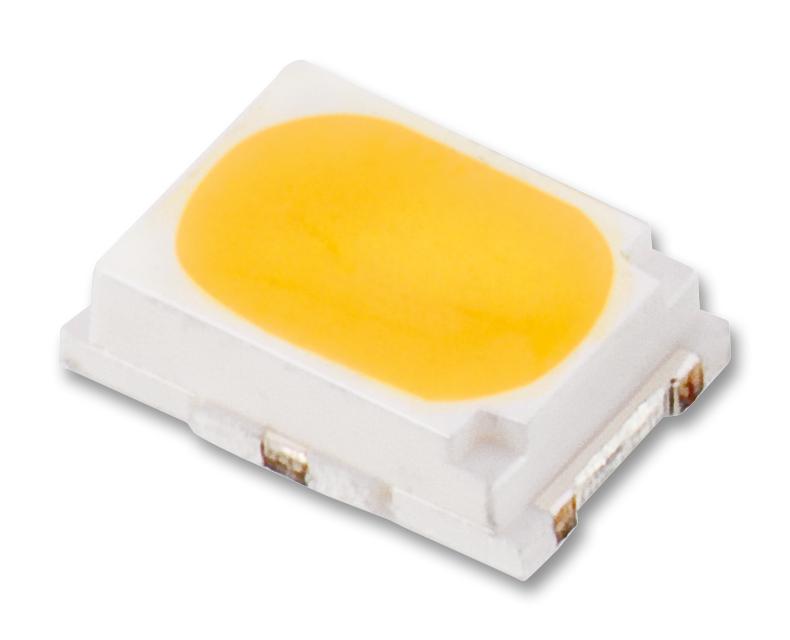

WURTH ELEKTRONIK 158302250 Surface Mount LED
This Wurth Elektronik SMD White Top View PLCC LED is designed for general electronic applications, offering daylight emission with a top LED lens type. It features an InGaN chip technology, high luminous flux, a wide viewing angle of 120°, and excellent electrical and optical properties suitable for diverse electronic projects. The device includes detailed specifications such as power dissipation of 297 mW, a peak forward current of 100 mA, and a maximum junction temperature of 130°C, ensuring reliable performance in various operational environments.
WURTH ELEKTRONIK 158302250 Surface Mount LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Daylight
- Lens Type: Top LED
- Power Dissipation: 297 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 85 mA
- Reverse Voltage: 5 V
- ESD Threshold: 2000 V (HBM)
- Junction Temperature: 130°C
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C, 60% RH max.
- Viewing Angle: 120°
- Chromaticity X (CIE 1931): 0.3387
- Chromaticity Y (CIE 1931): 0.3459
- Luminous Flux: 22 lm at 60 mA
- Forward Voltage: 3.2 - 3.5 V at 60 mA
- Correlated Color Temperature: 5000 K
- Color Rendering Index: 80-85
- Max. Ramp Up Rate: 3°C/s
- Max. Ramp Down Rate: 6°C/s
- Peak Temperature: 250°C
Buy the Wurth Series WL-SWTP LED: 158302250
Enhance your electronic applications with the high-performance daylight Surface Mount LED from Wurth Elektronik. Designed with InGaN chip technology, it features a broad 120° viewing angle, luminous flux of 22 lumens, and a peak forward current of 100 mA. This top LED provides reliable operation within -40°C to +85°C, ensuring durability across various environments. Ideal for indication, lighting, or day/night switching in industrial, consumer, or medical devices, order online now for fast delivery and superior quality performance.
Order your Wurth Series WL-SWTP LED today and give your electronic projects the dependable daylight illumination they deserve.
