WURTH ELEKTRONIK 3003308A Electromagnetic Shielding Sheet

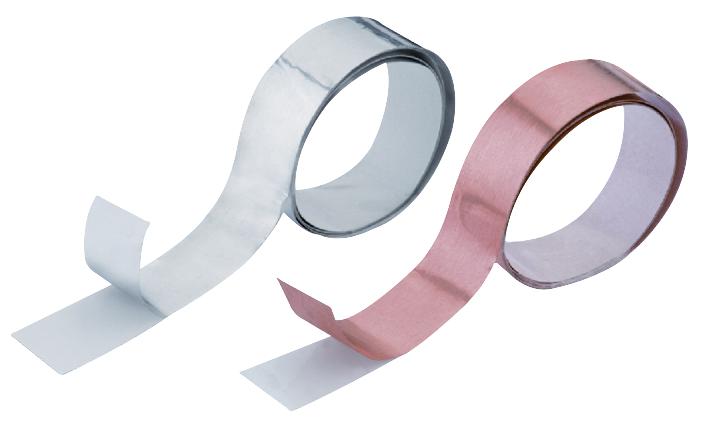

Copper-shielding sheet WE-CF by WURTH ELEKTRONIK is a flexible copper foil with a typical copper thickness of 0.04 mm. It features an acrylate conductive adhesive with a surface resistance of 0.035 ohms per cm and a volume resistance of 0.008 ohms per cm. Designed for electromagnetic shielding applications, this sheet has precise mechanical dimensions including an 8.0 mm width (plus 0.05 mm tolerance) and a length of 33.0 mm. It adheres well under testing conditions based on MIL STD 202F and operates reliably within temperature ranges from -25°C to +80°C, making it suitable for high-reliability electronic assemblies.
WURTH ELEKTRONIK 3003308A Electromagnetic Shielding Sheet Specifications:
- Base Material: Flexible copper foil
- Copper Thickness: 0.04 mm (typical)
- Adhesive: Conductive acrylate glue
- Surface Resistance: 0.035 ohm/cm (typical)
- Volume Resistance: 0.008 ohm/cm (typical)
- Mechanical Dimensions: Width 8.0 mm ± 0.05 mm, Length 33.0 mm
- Environmental Conditions: -25°C to +80°C operating and storage temperature
- Test Conditions: MIL STD 202F, surface area of 1 square inch, humidity 33%, temperature +20°C
Buy the Buy WURTH ELEKTRONIK Copper Shielding Sheet Part Number 3003308A Online
Purchase the WURTH ELEKTRONIK Copper Shielding Sheet now to ensure robust electromagnetic interference protection for your electronic assemblies. Crafted from flexible copper foil with a typical thickness of 0.04 mm and equipped with a conductive acrylate adhesive, this shielding sheet provides excellent surface and volume resistance. Its precise dimensions and reliable performance within temperature ranges from -25°C to +80°C make it ideal for aerospace, automotive, medical, and telecommunications applications. Available for fast online ordering, this shielding solution guarantees high-quality electromagnetic compatibility and durability to meet demanding industry standards.
Order your WURTH ELEKTRONIK Copper Shielding Sheet 3003308A today and enhance electromagnetic compatibility in your high-reliability electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 3003308A?
You can click on the BUY or RFQ button to purchase 3003308A from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 3003308A?
You can download the 3003308A datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 3003308A?
WURTH ELEKTRONIK
