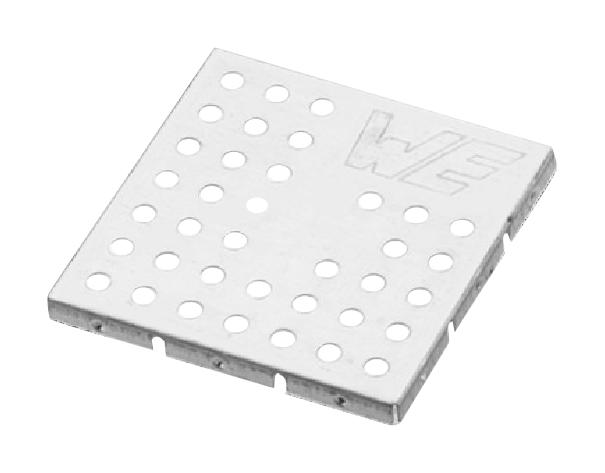

WURTH ELEKTRONIK 36006320S Shielding Cabinet
The Würth Elektronik WE-SHC 36006320S is a metal shielding cabinet designed to protect sensitive electronic components from electromagnetic interference (EMI) and radio frequency interference (RFI). Constructed with a steel core and tin plate, it provides a durable and reliable enclosure. This component is intended for use in general electronic equipment and is not suitable for applications requiring high safety or reliability standards without prior written approval. Proper storage and handling are crucial to maintain its performance and solderability, with a recommended storage period of no more than 12 months.
WURTH ELEKTRONIK 36006320S Shielding Cabinet Specifications:
- Core Material: Steel
- Base Material: Tin plate
- Plating: Tin
- Version Type: Top Cover, Two Piece Cover
- Material Thickness: 0.2 mm
- Operating Temperature: -40 up to +125 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free: Conform [IEC 61249-2-21]
- Inner Dimension: 32.06 ±0.1 mm
- Outer Dimension: 32.46 ±0.1 mm
- Dimension A: 2.23
- Dimension B: 3.5
- Dimension O: 1.6
- Dimension R: ±0.1
- Dimension A1: 2.0
- Dimension B1: 3.5 ±0.1
