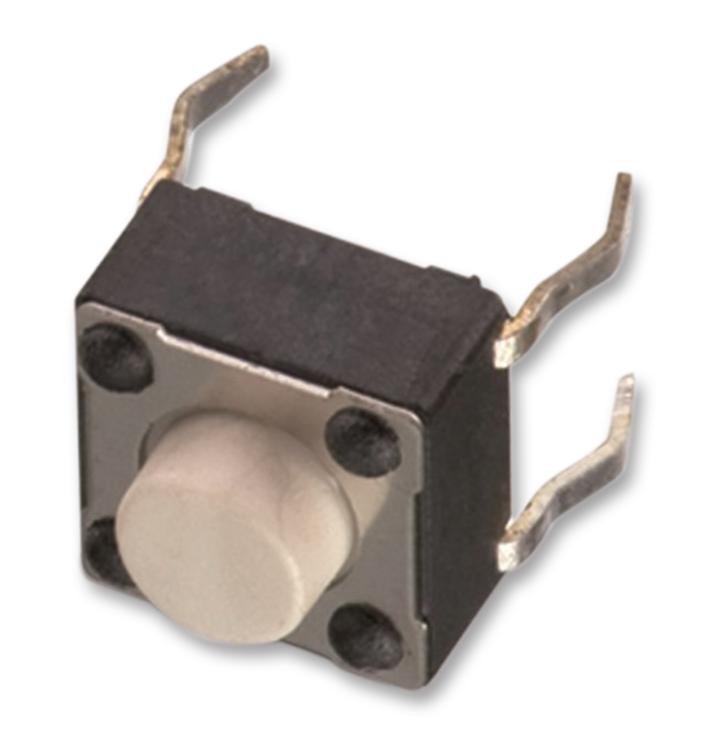

WURTH ELEKTRONIK 430156043726 THT Relay Switch
The Wurth Elektronik 430156043726 is a THT relay switch designed for integration into general electronics equipment. It boasts a stainless steel cover, LCP stem and frame (UL 94V-0), and a contact with silver cladding. The relay offers a stroke of 0.25 + 0.2 mm / - 0.1 mm and is suitable for wave soldering up to 260°C for 10 seconds or hand soldering up to 350°C for 3 seconds. It is ROHS and REACH compliant. Before use in safety-critical applications, a thorough reliability evaluation is recommended.
WURTH ELEKTRONIK 430156043726 THT Relay Switch Specifications:
- Rating: 50mA, 12VDC
- Contact Resistance: Initial: 100mOHM max., After Life Test: 2OHM max.
- Insulation Resistance: min. 100MOHM at 500VDC
- Dielectric Strength: 250VAC for 1 minute
- Stroke: 0.25 + 0.2 mm / - 0.1 mm
- Cover: Stainless Steel
- Stem: LCP UL 94V-0
- Frame: LCP UL 94V-0, color Black
- Contact: Stainless Steel with silver cladding
- Terminal: Brass with tin plating
- Storage Condition: -40°C ~ +85°C
- Operation Condition: -40°C ~ +85°C
- Compliance: Lead Free, ROHS, Reach
Buy the 430156043726 WURTH ELEKTRONIK THT Relay Switch | myMectronic
Purchase the Wurth Elektronik 430156043726 THT Relay Switch securely online today.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 430156043726?
You can click on the BUY or RFQ button to purchase 430156043726 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 430156043726?
You can download the 430156043726 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 430156043726?
WURTH ELEKTRONIK
