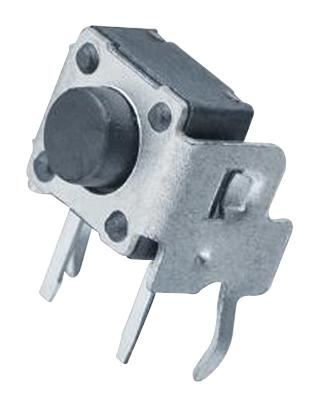

WURTH ELEKTRONIK 431256038736 Tactile Switch
The tactile switch features a compact 6x6mm right-angle design, rated for 50mA at 12VDC, with a stroke of 0.25mm, and a lifespan of 200,000 cycles. Made from carbon steel and LCP UL 94V-0 black material, it has a stainless steel contact with silver cladding and a copper alloy terminal with tin plating. It supports wave and hand soldering, operates between -40°C and +85°C, and complies with RoHS and Reach standards. Ideal for PCB mounting in various electronic applications requiring reliable tactile actuation.
WURTH ELEKTRONIK 431256038736 Tactile Switch Specifications:
- Rating: 50mA, 12VDC
- Contact Resistance: Initial 100mΩ max., After Life Test 2Ω max.
- Insulation Resistance: min. 100MOHM at 500VDC
- Dielectric Strength: 250VAC for 1 minute
- Stroke: 0.25 +0.2mm /- 0.1mm
- Material: Carbon Steel Plate, LCP UL 94V-0 Black
- Contact Material: Stainless Steel with silver cladding
- Terminal: Copper alloy with tin plating
- Soldering: Wave soldering at max 260°C for 10 sec., Hand soldering under 350°C for 3 sec.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Compliance: RoHS, Reach, Lead-Free
- Packaging: Bulk
- Life Cycle: 200,000 cycles
- Force: 50g, 80g options available
- Color Options: Black, White, Salmon
- Projection: 6mm right-angle design
Buy the Wurth Elektronik 431256038736 – Reliable Tactile Switch for Industrial Applications
Enhance your electronic devices with this reliable 6x6mm tactile switch designed for PCB mounting. Rated at 50mA and 12VDC, it offers a lifespan of 200,000 cycles, ensuring durability and consistent performance. Made from high-quality materials including stainless steel and copper alloy terminals with tin plating, it supports wave and hand soldering for easy assembly. Operating efficiently between -40°C and +85°C, this switch is compliant with RoHS and Reach standards, making it an ideal choice for industrial and consumer electronics requiring precise tactile input.
Buy Wurth Elektronik 431256038736 now and experience unmatched reliability and performance in electronic control solutions.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 431256038736?
You can click on the BUY or RFQ button to purchase 431256038736 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 431256038736?
You can download the 431256038736 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 431256038736?
WURTH ELEKTRONIK
