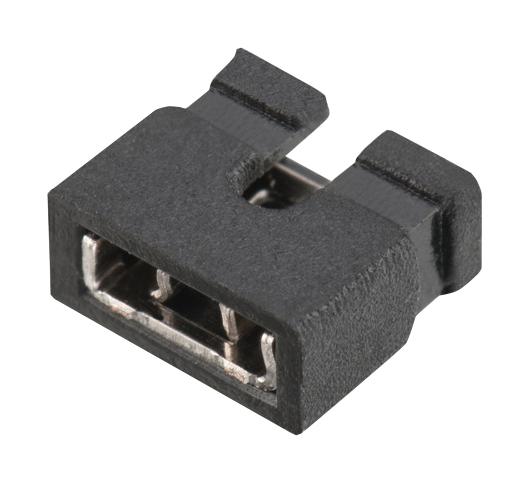

WURTH ELEKTRONIK 60800213421 Jumper with Test Point
This 2.00mm jumper with test point from Wurth Elektronik is designed for reliable electrical connections in electronic assemblies. It features a sturdy copper alloy contact with gold plating for enhanced conductivity and corrosion resistance. The jumper is insulated with black PBT material rated UL94-V0 flammability and supports up to 25 mating cycles. Operating temperature ranges from -40 °C to +105 °C, with a rated current of 1 A and working voltage of 200 VAC, making it suitable for various industrial and electronic testing applications.
WURTH ELEKTRONIK 60800213421 Jumper with Test Point Specifications:
- Pitch: 2 mm
- Material: Copper Alloy with Gold Plating
- Insulator Material: PBT
- Insulator Flammability Rating: UL94-VO
- Insulator Color: Black
- Operating Temperature: -40 °C up to +105 °C
- Rated Current: 1 A
- Working Voltage: 200 VAC
- Withstanding Voltage: 500 V (AC, 14 min)
- Contact Resistance: Max. 30 mΩ
- Insulation Resistance: Min. 500 MΩ
- Testing Cycles: 25 Mating Cycles
- Packaging: Bag of 1000 units
Buy the Wurth Elektronik 60800213421 – Reliable Jumper with Test Point for Industrial Applications
Order the Wurth Elektronik jumper with test point today and enjoy secure, high-performance connections for your electronic projects. Crafted with gold-plated copper contacts, this 2.00mm jumper supports up to 25 mating cycles and operates reliably from -40°C to +105°C. Its UL94-V0 rated black PBT insulator ensures safety and durability in demanding environments. Ideal for industrial testing and electronic assembly, this component guarantees optimal reliability, easy handling, and consistent performance. Purchase online now for fast delivery and expert support.
Buy Wurth Elektronik 60800213421 now and experience reliable electrical connections with high-quality gold-plated contacts and robust insulation for your industrial and testing needs.
