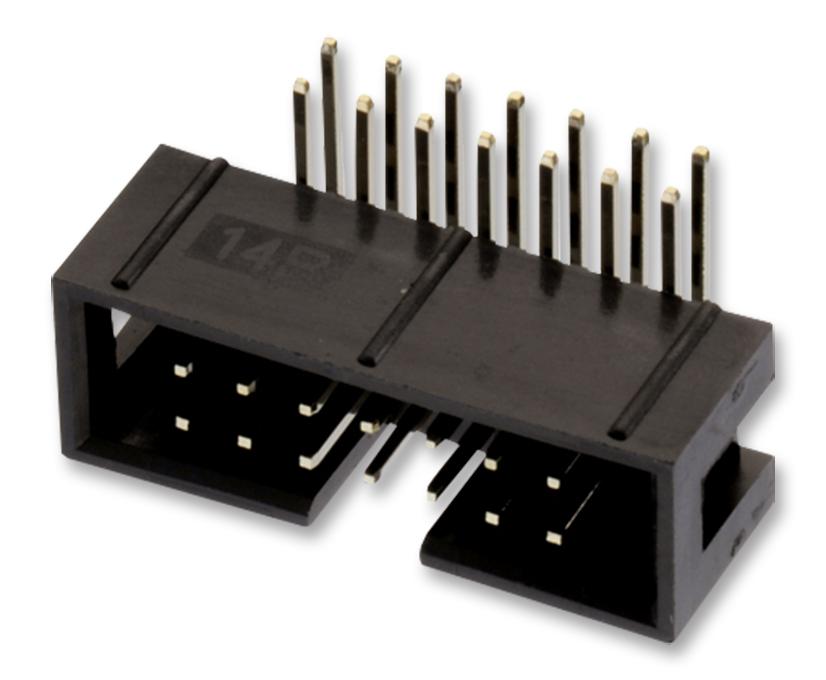

WURTH ELEKTRONIK 61201421721 Box Header
The WR-BHD Male Angled Box Header by Wurth Elektronik is a durable, high-quality connector designed for reliable electrical connections in electronic equipment. Built with a copper alloy contact material plated in gold, it ensures excellent conductivity and corrosion resistance. Its PBT insulator with UL94 V-0 flammability rating guarantees safety in various operating environments, which range from -40°C to +105°C. Designed for wave soldering with a pitch of 2.54 mm and a durability of 500 mating cycles, it offers robust performance in automation, control, and electronic assemblies.
WURTH ELEKTRONIK 61201421721 Box Header Specifications:
- Pitch: 2.54 mm
- Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PBT
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Rated Current: 3 A
- Working Voltage: 250 V AC
- Withstanding Voltage: 500 V
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 1000 MΩ min
- Operating Temperature: -40°C to +105°C
- Durability: 500 mating cycles
Buy the Wurth Elektronik Series Box Header High-Quality: 61201421721
Purchase the Wurth Elektronik WR-BHD angled box header online today and ensure excellent connectivity in your electronic projects. This connector features gold-plated contacts for superior conductivity, a rugged PBT insulator rated UL94 V-0 for safety, and a 2.54 mm pitch suitable for high-density assemblies. With a lifetime of 500 mating cycles and operation from -40°C to +105°C, it’s perfect for industrial control, automation, and electronic equipment. Reliable, safe, and easy to integrate—order now for prompt delivery.
Get Wurth Elektronik WR-BHD angled box header today—designed for high durability and reliable electrical connections in demanding environments.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61201421721?
You can click on the BUY or RFQ button to purchase 61201421721 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61201421721?
You can download the 61201421721 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61201421721?
WURTH ELEKTRONIK
