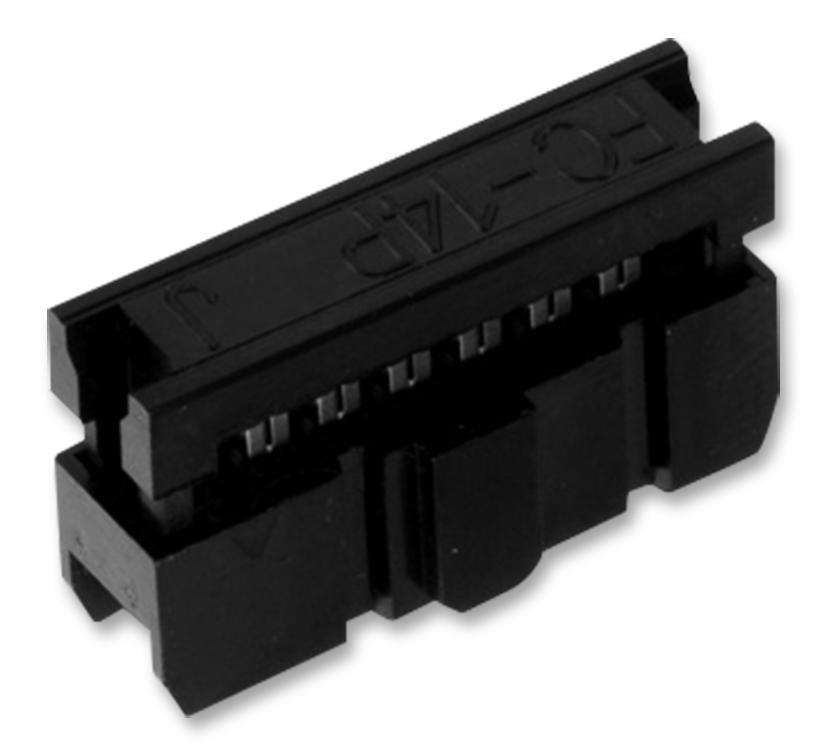

WURTH ELEKTRONIK 61201423021 IDC connector
This is a 2.54mm female IDC connector with strain relief, made of PBT insulator with UL94-VO flammability rating, and copper alloy contacts with selective gold plating. Designed for reliable electrical connections, it operates efficiently within -40°C to 125°C temperature range, supporting a maximum current of 1A and working voltage of 250V AC. Compliant with RoHS and lead-free standards, it features a 2.54mm pin pitch, and dimensions are tailored for easy insertion and strain relief. Ideal for wiring harnesses and electronic assembly, ensuring durability and consistent performance in various applications.
WURTH ELEKTRONIK 61201423021 IDC connector Specifications:
- Material: PBT insulator, copper alloy contacts
- Flammability Rating: UL94-VO
- Contact Plating: Selective gold
- Pin Pitch: 2.54mm
- Operating Temperature: -40°C to 125°C
- Current Rating: 1A MAX
- Working Voltage: 250V AC
- Insulator Resistance: >1000 MΩ
- Dielectric Withstanding Voltage: 500V AC/MN
- Contact Resistance: 20 mΩ MAX
- RoHS Compliant, Lead-Free
- Dimensions vary with model, length options from 5.08mm to 85.96mm
- Packaged in tray and bag for strain relief, with carton packaging
Buy the WORTH Series 2.54mm IDC Connector: 61201423021
Discover the high-quality 2.54mm female IDC connector with strain relief from WORTH. Crafted with premium PBT insulator and gold-plated copper contacts, this connector guarantees durability and optimal electrical performance. Suitable for wiring harnesses, it supports temperatures from -40°C to 125°C and handles up to 1A current and 250V AC voltage. Its RoHS compliance ensures environmentally friendly manufacturing. Easy to install, it comes in protective packaging including trays and bags, making it easy to order online and meet your electronic assembly needs with confidence.
Order your WORTH Series 2.54mm IDC Connector with strain relief today and ensure secure, reliable connections for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61201423021?
You can click on the BUY or RFQ button to purchase 61201423021 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61201423021?
You can download the 61201423021 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61201423021?
WURTH ELEKTRONIK
