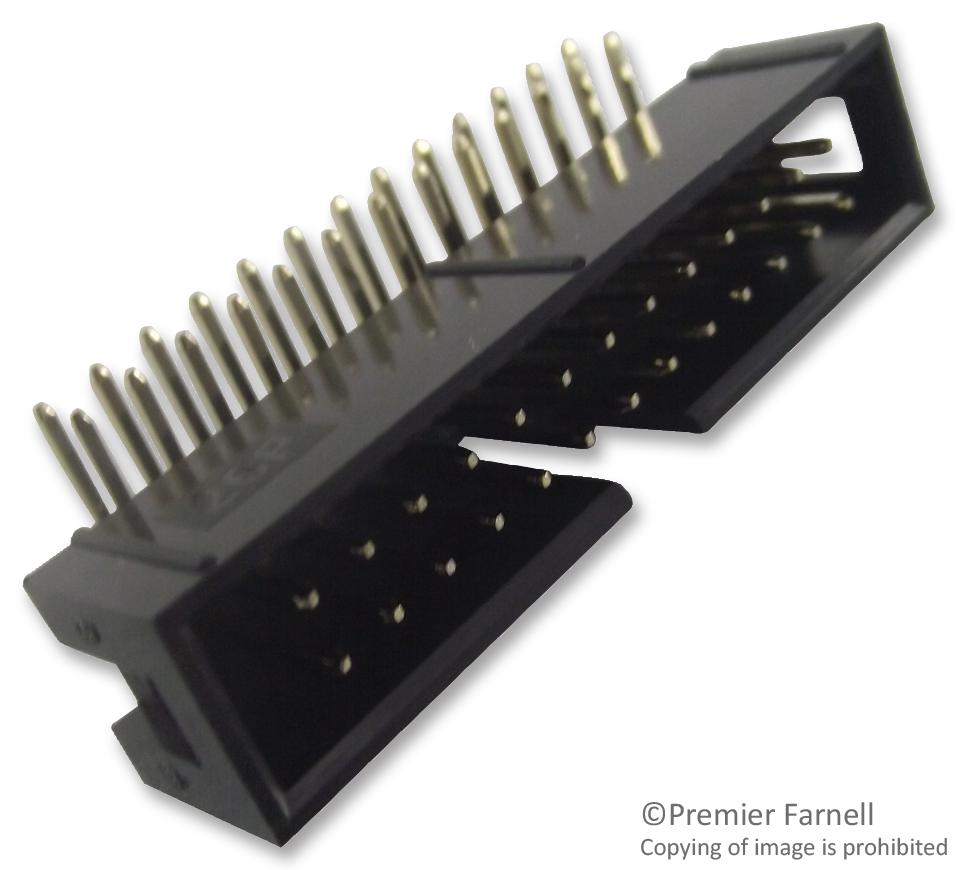

WURTH ELEKTRONIK 61202621721 Box Header Connector
The WR-BHD Male Angled Box Header is a 2.54 mm pitch connector designed for reliable electrical connections in electronic applications. Made with copper alloy contacts gold-plated for enhanced conductivity and corrosion resistance, it features an insulator made from UL94 V-0 rated PBT in black color. This component withstands temperatures from -40°C to +105°C and supports up to 3 A current at 250 V. With a length of 40.68 mm and durability of 500 mating cycles, it is suitable for use in various electronic equipment and assemblies requiring secure and durable connections.
WURTH ELEKTRONIK 61202621721 Box Header Connector Specifications:
- Pitch: 2.54 mm
- Length: 40.68 mm
- Pin to Pin: 30.48 mm
- Contacts: 7 (stamped copper alloy, gold-plated)
- Insulator Material: PBT, UL94 V-0 flammability rated
- Insulator Color: Black
- Operating Temperature: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V
- Withstanding Voltage: 500 V for 1 minute
- Contact Resistance: Max 20 mΩ
- Insulation Resistance: Min 1000 MΩ
- Durability: 500 mating cycles
- Certification: RoHS, REACH, Halogen Free, UL approval 323964
Buy the WURTH ELEKTRONIK Part 61202621721 – Reliable Connectors for Industrial Applications
Order the WURTH ELEKTRONIK WR-BHD Male Angled Box Header online today and ensure a secure, durable electrical connection for your electronic equipment. With a 2.54 mm pitch, gold-plated contacts, and robust insulator materials, this connector supports up to 3 A and withstands temperatures from -40°C to +105°C. Its high mating cycle durability of 500 cycles makes it ideal for various industrial and electronic applications requiring reliable mechanical and electrical performance. Get yours now and enhance your device’s connectivity and safety.
Buy WURTH ELEKTRONIK WR-BHD Male Angled Box Header now and experience unmatched reliability and performance in electronic connector applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61202621721?
You can click on the BUY or RFQ button to purchase 61202621721 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61202621721?
You can download the 61202621721 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61202621721?
WURTH ELEKTRONIK
