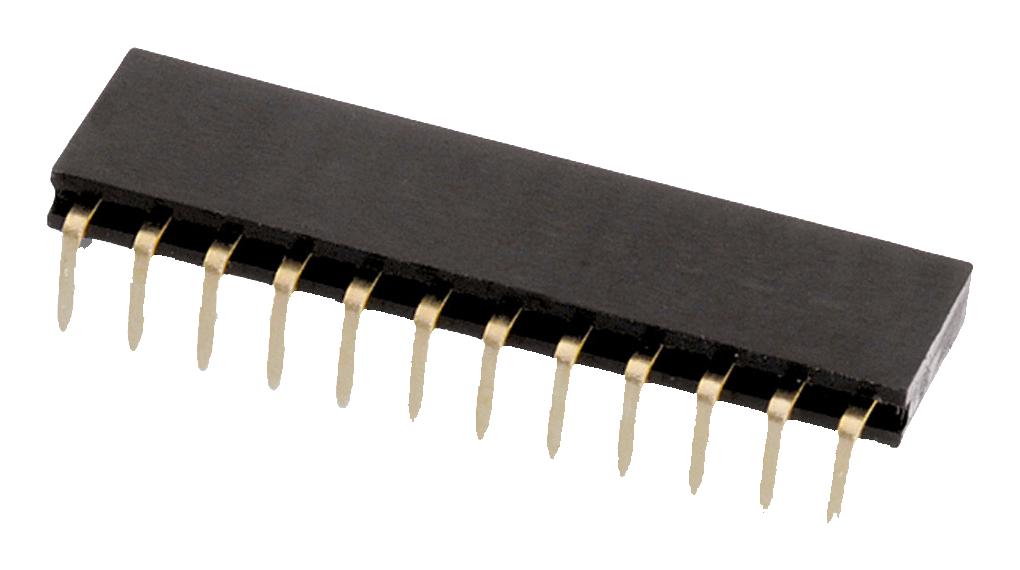

WURTH ELEKTRONIK 613002143121 Socket Header
The WR-PHD Angled Socket Header by Wurth Elektronik features a 2.54 mm pitch, black PBT insulator, gold-plated copper alloy contacts, and a durable design supporting 25 mating cycles. This compact, angled connector is suitable for electronic equipment requiring reliable connections in space-constrained applications. It operates within a temperature range of -40°C to +105°C, with rated currents of 3 A and a working voltage of 250 V. Certified RoHS, REACH compliant, and UL listed, it ensures high safety and quality standards for versatile electronic assemblies.
WURTH ELEKTRONIK 613002143121 Socket Header Specifications:
- Pitch: 2.54 mm
- Pins: 2
- Pin to Pin (Middle): 2.54 mm
- Length: 5.58 mm
- Material: Copper Alloy, Gold-plated
- Insulator Material: PBT
- Insulator Flammability Rating: UL94V-0
- Insulation Color: Black
- Rated Current: 3 A
- Working Voltage: 250 V
- Withstanding Voltage: 500 V, 1 min
- Contact Resistance: 20 mo max.
- Insulation Resistance: 1000 Mo min.
- Durability: 25 mating cycles
- Operating Temperature: -40°C to +105°C
- Certifications: RoHS, REACH, UL Listed
Buy the Wurth Series Socket Header: 613002143121
Purchase the Wurth Series Angled Socket Header online today to achieve dependable electrical connections in compact spaces. This connector with a 2.54 mm pitch, gold-plated contacts, and UL94V-0 flammability rating is suitable for various electronic applications. Certified RoHS and UL listed, it supports up to 3 A current and withstands temperatures from -40°C to +105°C. Ideal for space-saving and high-reliability environments, order now and enhance your assembly’s performance with high-quality components.
Order your Wurth Series Angled Socket Header today and ensure reliable, space-saving connections for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 613002143121?
You can click on the BUY or RFQ button to purchase 613002143121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 613002143121?
You can download the 613002143121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 613002143121?
WURTH ELEKTRONIK
