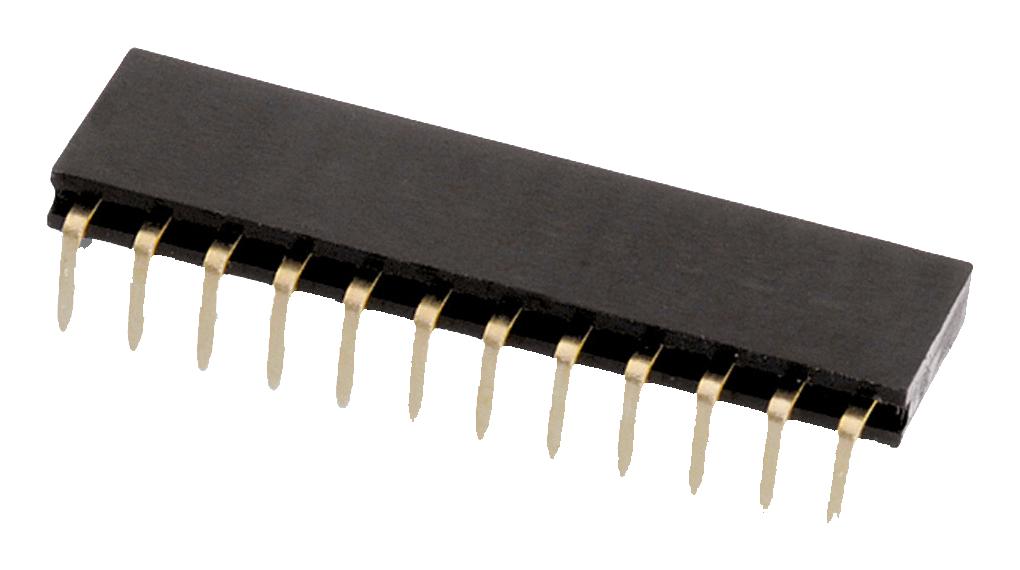

WURTH ELEKTRONIK 613003143121 Socket Header
The WR-PHD Angled Socket Header is a 2.54 mm pitch connector designed for reliable signal and power connections in electronic equipment. Featuring copper alloy contacts with gold plating, UL94V-0 insulator material in black, and a durability of 25 mating cycles, this socket header operates within -40 to +105°C. Suitable for wave soldering, it ensures secure, corrosion-resistant connections. Compliant with RoHS and REACH standards, it is ideal for general electronic applications requiring high reliability and secure connections in compact, space-constrained environments.
WURTH ELEKTRONIK 613003143121 Socket Header Specifications:
- Pitch: 2.54 mm
- Pins: 3
- Pin to Pin (Middle): 5.08 mm
- Length L: 8.12 mm
- Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PBT
- Insulator Flammability Rating: UL94V-0
- Operating Temperature: -40 to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V
- Withstanding Voltage: 500 V (1 min)
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 1000 MΩ min
- Durability: 25 Mating cycles
- Soldering Profile: Wave soldering compatible, Pb-Free and Sn-Pb variants
- Standards: RoHS, REACH, UL approved
Buy the WURTH ELEKTRONIK Series PHD Angled Socket Header: 613003143121
Buy the WURTH ELEKTRONIK PHD Angled Socket Header online today to ensure secure, corrosion-resistant connections. Designed for reliable performance in compact spaces, with gold-plated contacts and high durability ratings, this connector is suitable for wave soldering and general electronic applications. Its operating temperature range from -40 to +105°C makes it ideal for diverse environments. Purchase now to benefit from RoHS and REACH compliance, ensuring safe and environmentally friendly electronic assembly with long-lasting performance across your projects.
Get WURTH ELEKTRONIK 613003143121 today—built for high reliability and durable electronic connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 613003143121?
You can click on the BUY or RFQ button to purchase 613003143121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 613003143121?
You can download the 613003143121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 613003143121?
WURTH ELEKTRONIK
