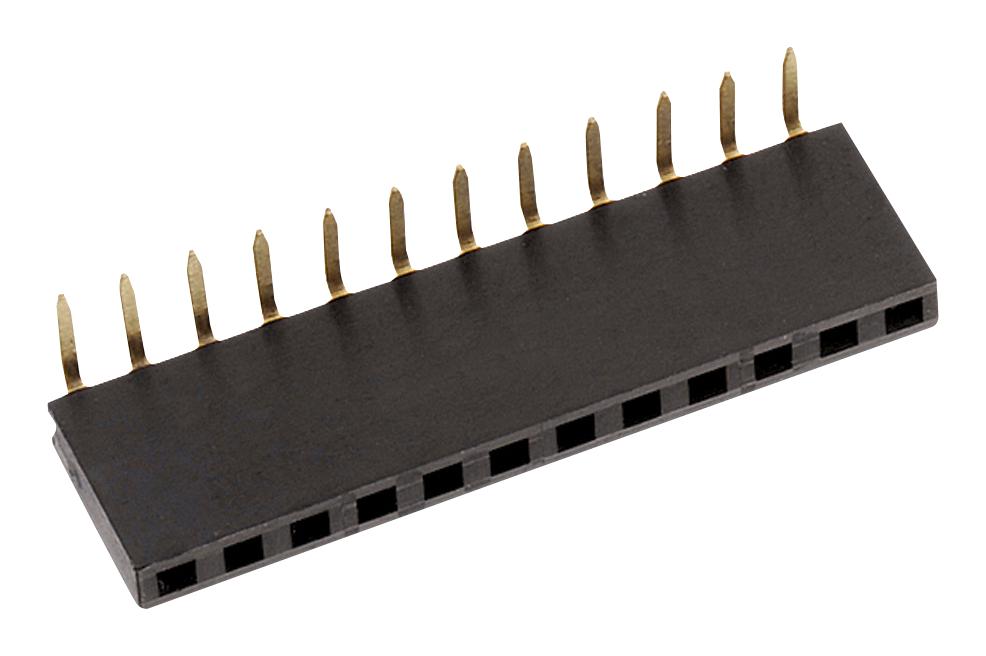

WURTH ELEKTRONIK 613006143121 angled socket header
The WR-PHD Angled Socket Header is a 2.54 mm pitch connector designed for reliable electronic connections in industrial and automation applications. It features a copper alloy contact with gold plating for high conductivity and durability. With a maximum of 25 mating cycles, this component operates within -40°C to +105°C and complies with RoHS and UL standards. The insulator is made of PBT with UL94V-0 flammability rating. Suitable for soldering processes, it offers high insulation resistance and rated currents up to 3 A, making it ideal for precise, secure PCB connections in various electronic systems.
WURTH ELEKTRONIK 613006143121 angled socket header Specifications:
- Pitch: 2.54 mm
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PBT
- Insulator Flammability: UL94V-0
- Operating Temperature: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V AC
- Withstanding Voltage: 500 V for 1 minute
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 1000 MΩ min
- Durability: 25 mating cycles
- Pin to Pin (Middle): 127 mm
- Length: 13.2 mm
- Pin Count: 6
- Preheat Temperature (Wave Soldering): 100°C min, 120°C typical, 130°C max
- Peak Temperature (Wave Soldering): 250-260°C
- Compliance: RoHS, UL, REACH
- Storage: Keep in original packaging, use within 12 months
Buy the WURTH ELEKTRONIK 613006143121 – Reliable PCB Connector for Industrial Applications
Purchase the WURTH ELEKTRONIK WR-PHD Angled Socket Header online today and enjoy reliable, high-performance connectivity for your PCB assemblies. With a 2.54 mm pitch, gold-plated contacts, and robust insulator material, it guarantees secure connections and easy assembly. Ideal for industrial electronics, automation systems, and safety-critical applications, this connector adheres to RoHS and UL standards. Order now to improve your device reliability and streamline your manufacturing process with this durable and high-quality connector available for fast online delivery.
Order your WURTH ELEKTRONIK series WR-PHD angled socket header today and ensure secure, high-quality connections in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 613006143121?
You can click on the BUY or RFQ button to purchase 613006143121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 613006143121?
You can download the 613006143121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 613006143121?
WURTH ELEKTRONIK
