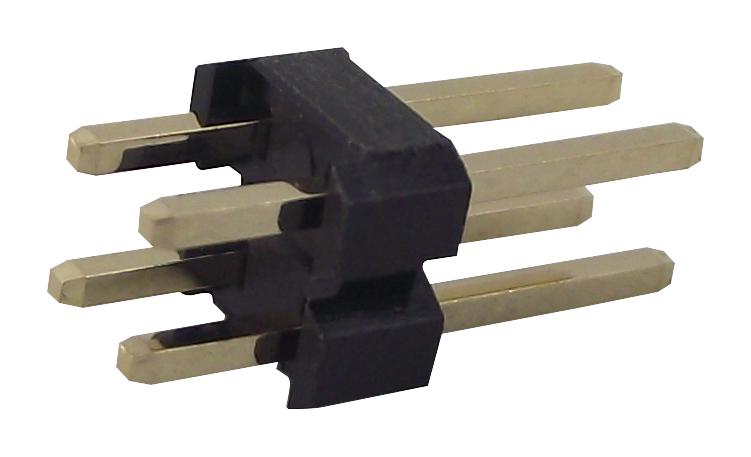

WURTH ELEKTRONIK 61303221121 Dual Pin Header
The WR-PHD Dual Pin Header is a high-quality electronic connector designed for reliable signal and power connections in various electronic devices. Made with copper alloy contacts plated with gold, it ensures excellent electrical conductivity and durability. The insulator is made of PABT material with UL94V-0 flammability rating, available in black. With a pitch of 2.54 mm and operating temperature range from -40°C to +105°C, it supports 25 mating cycles. Suitable for wave soldering, it complies with RoHS and REACh standards for environmentally safe use.
WURTH ELEKTRONIK 61303221121 Dual Pin Header Specifications:
- Pitch P 2.54 mm
- Durability 25 Mating cycles
- Insulator Material PABT
- Insulator Flammability Rating UL94V-0
- Insulator Color Black
- Contact Material Copper Alloy
- Contact Plating Gold
- Contact Type Stamped
- Operating Temperature Range: -40°C to +105°C
- Rated Current 3 A
- Working Voltage 250 V
- Withstanding Voltage 500 V, 1 min
- Contact Resistance Max. 20 mo
- Insulation Resistance Min. 1000 Mo
- Suitable for wave soldering
- Certifications RoHS, REACh, UL
Buy the Wurth Elektronik Series Dual Pin Header: 61303221121
Order the Wurth Elektronik Dual Pin Header with 2.54 mm pitch today through our online store. Designed for reliable, high-quality electrical connections, it features gold-plated contacts for excellent conductivity and durability. Suitable for wave soldering and compliant with RoHS and REACh standards, ensuring environmental safety. This connector supports 25 mating cycles and operates within -40°C to +105°C, making it ideal for various electronic applications. Experience quick, secure, and reliable connections in your project today.
Get Wurth Elektronik 61303221121 today—built for precision and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61303221121?
You can click on the BUY or RFQ button to purchase 61303221121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61303221121?
You can download the 61303221121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61303221121?
WURTH ELEKTRONIK
