WURTH ELEKTRONIK 61303421021 Electrical Header Connector
The WR-PHD Angled Dual Pin Header is a high-quality, 2.54 mm pitch electrical connector designed for reliable signal and power connections in electronic devices. Built with copper alloy contacts plated with gold, it offers durable performance with UL94V-0 flammability rated insulators made of PABT in black color. The header supports up to 25 mating cycles, operates between -40°C and +105°C, and is RoHS and REACH compliant. Its robust design and precise dimensions ensure secure, long-lasting connections suitable for various electronic assemblies and critical applications.
WURTH ELEKTRONIK 61303421021 Electrical Header Connector Specifications:
- Pitch: 2.54 mm
- Length: 43.18 mm
- Pin to Pin (Middle): 40.64 mm
- Durability: 25 mating cycles
- Operating Temperature: -40°C to +105°C
- Insulator Material: PABT
- Insulator Flammability Rating: UL94V-0
- Insulator Color: Black
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Rated Current: 3 A
- Working Voltage: 250 V AC
- Withstanding Voltage: 500 V, 1 min
- Contact Resistance: 20 mΩ max.
- Insulation Resistance: 1000 MΩ min.
- Compliance: RoHS, REACH, UL Approval

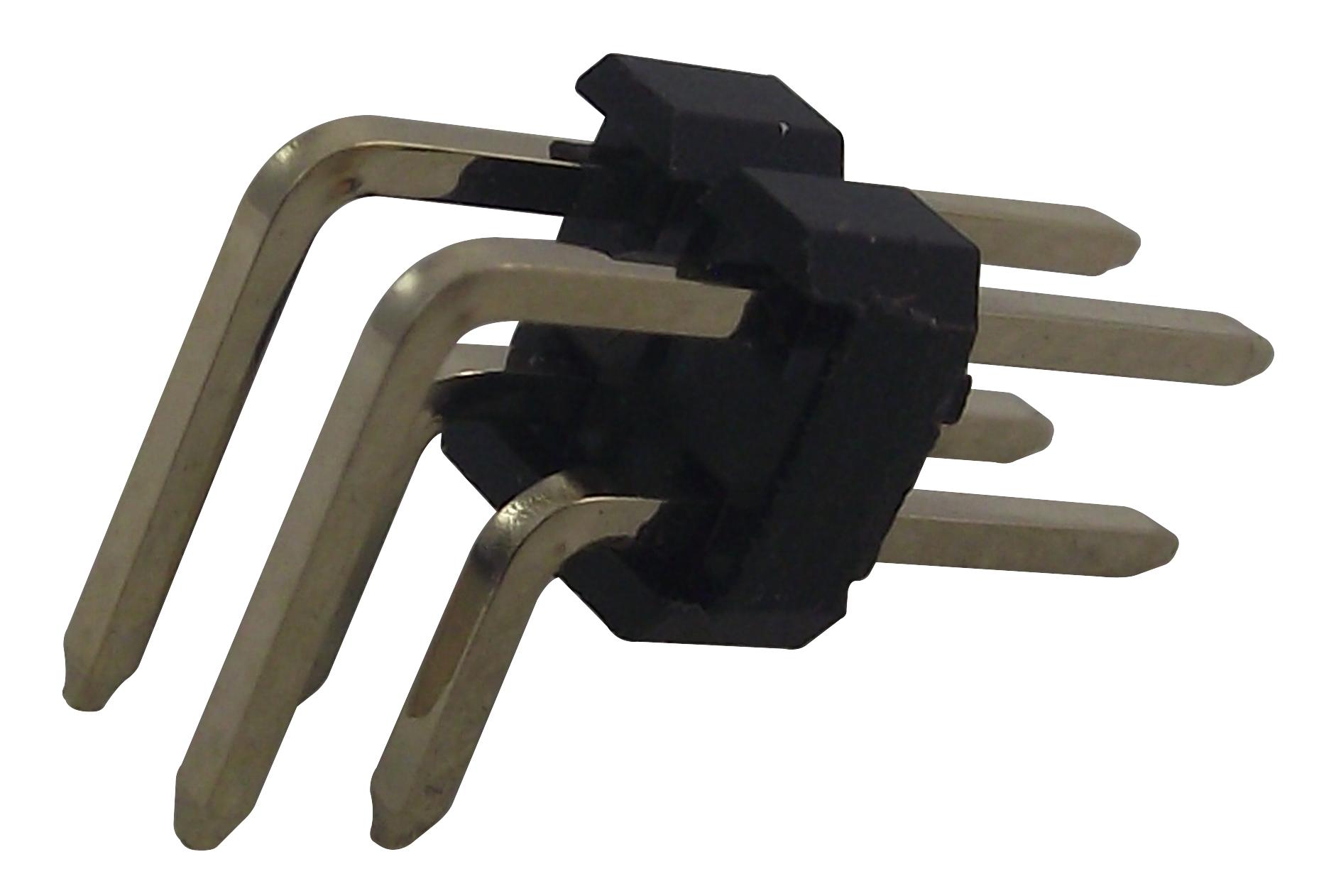

Buy the Wurth Elektronik Series Dual Pin Header: 61303421021
Enhance your electronic assemblies with the Wurth Elektronik angled dual pin header. Featuring gold-plated contacts, 2.54 mm pitch, and durability supporting 25 mating cycles, it is ideal for secure signal and power connections. Operating over a temperature range of -40°C to +105°C, it meets RoHS, REACH, and UL standards, ensuring safety and long-term performance. Easy to install and reliable, this connector is perfect for industrial, automation, and electronics prototyping applications, providing precision and durability in demanding environments.
Buy Wurth Elektronik 61303421021 angled dual pin header now and experience unmatched reliability and secure connections for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61303421021?
You can click on the BUY or RFQ button to purchase 61303421021 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61303421021?
You can download the 61303421021 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61303421021?
WURTH ELEKTRONIK
