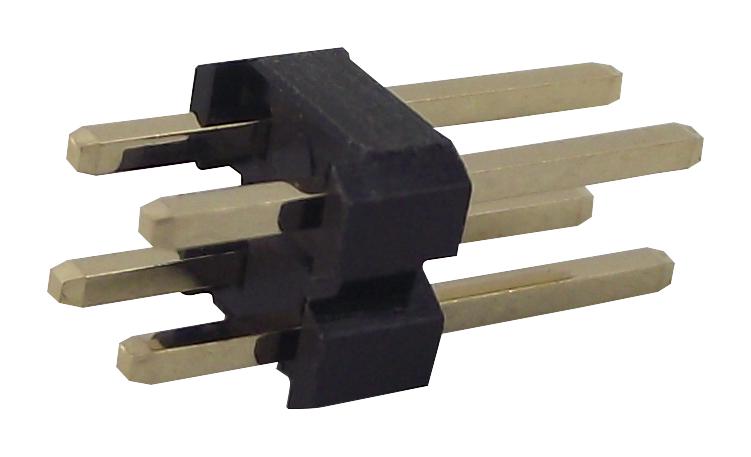

WURTH ELEKTRONIK 61307221121 Dual Pin Header
The WR-PHD Dual Pin Header is a high-quality, gold-plated copper alloy connector designed for reliable electrical connections in electronic equipment. It features a pitch of 2.54 mm, durable for up to 25 mating cycles, and meets UL94V-0 flammability standards. Made from black PABT insulator material, it ensures excellent electrical insulation and mechanical stability. Suitable for applications requiring precise pin alignment and robust performance, this component complies with RoHS and REACh standards, making it ideal for industrial, electronic, and automation systems demanding high safety and reliability.
WURTH ELEKTRONIK 61307221121 Dual Pin Header Specifications:
- Pitch: 2.54 mm
- Pin to Pin (Middle): 88.9 mm
- Material: Copper Alloy with Gold Plating
- Insulator Material: PABT
- Flammability Rating: UL94V-0
- Operating Temperature: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V
- Withstanding Voltage: 500 V for 1 min
- Contact Resistance: Max 20 mΩ
- Insulation Resistance: Min 1000 MΩ
- Durability: 25 Mating Cycles
- Wave Soldering Profiles: Compatible with both lead-free and Sn-Pb soldering processes
- RoHS and REACh compliant
- Certification: UL Approval (U323964)
Buy the Wurth Elektronik Series Dual Pin Header: 61307221121
Enhance your electronic assembly with the durable and reliable Dual Pin Header from Wurth Elektronik. Featuring gold-plated contacts for optimal conductivity, UL94V-0 insulator, and a robust 25 mating cycle lifespan, it ensures dependable performance for industrial and automation systems. Compliant with RoHS and REACh standards, this high-quality connector supports efficient soldering in wave soldering profiles and precise pin alignment. Order online now to secure this essential component for your high-reliability electronic applications, providing superior connectivity and safety.
Get Wurth Elektronik 61307221121 today—built for precision and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61307221121?
You can click on the BUY or RFQ button to purchase 61307221121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61307221121?
You can download the 61307221121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61307221121?
WURTH ELEKTRONIK
