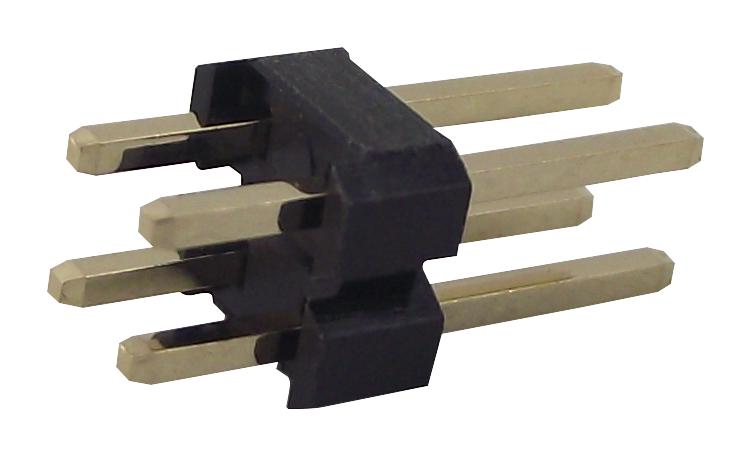

WURTH ELEKTRONIK 61308021121 Dual Pin Header
The WR-PHD Dual Pin Header from Wurth Elektronik is a compact, reliable connector with a 2.54 mm pitch, designed for electronic equipment. Crafted from copper alloy with gold plating, it features UL94V-0 flammability-rated PABT insulator in black. This stamped contact type supports 25 mating cycles, rated for 3 A current and 250 V working voltage. Operating within -40°C to +105°C, it ensures durability and electrical safety in various electronic applications. Suitable for wave soldering, it complies with RoHS and REACH certifications, making it ideal for general industrial and electronic projects.
WURTH ELEKTRONIK 61308021121 Dual Pin Header Specifications:
- Pitch: 2.54 mm
- Material: Copper Alloy, Gold Plated
- Insulator Material: PABT, Flammability Rating UL94V-0, Color: Black
- Rated Current: 3 A
- Working Voltage: 250 V
- Withstanding Voltage: 500 V for 1 min
- Contact Resistance: 20 mΩ max.
- Insulation Resistance: 1000 MΩ min.
- Durability: 25 mating cycles
- Operating Temperature: -40°C to +105°C
- Soldering Profile: Wave Soldering Profile, compliant with EN61760-1:2006
- Certifications: RoHS, REACH, UL approval
Buy the Wurth Elektronik 61308021121 – Reliable Dual Pin Header for Industrial Applications
Purchase the Wurth Elektronik Dual Pin Header online today for your electronic projects. Designed with a 2.54 mm pitch, gold-plated contacts, and UL94V-0 rated insulators, this connector ensures reliable electrical connections, durability for 25 mating cycles, and safe operation within a -40°C to +105°C environment. Ideal for general electronic, industrial, and automation applications, it meets RoHS and REACH standards, making it a versatile and certification-compliant choice for professional electronics assembly.
Order your Wurth Elektronik 61308021121 Dual Pin Header today and enhance your electronic assemblies with dependable, high-quality connectors designed for industry-grade performance.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61308021121?
You can click on the BUY or RFQ button to purchase 61308021121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61308021121?
You can download the 61308021121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61308021121?
WURTH ELEKTRONIK
