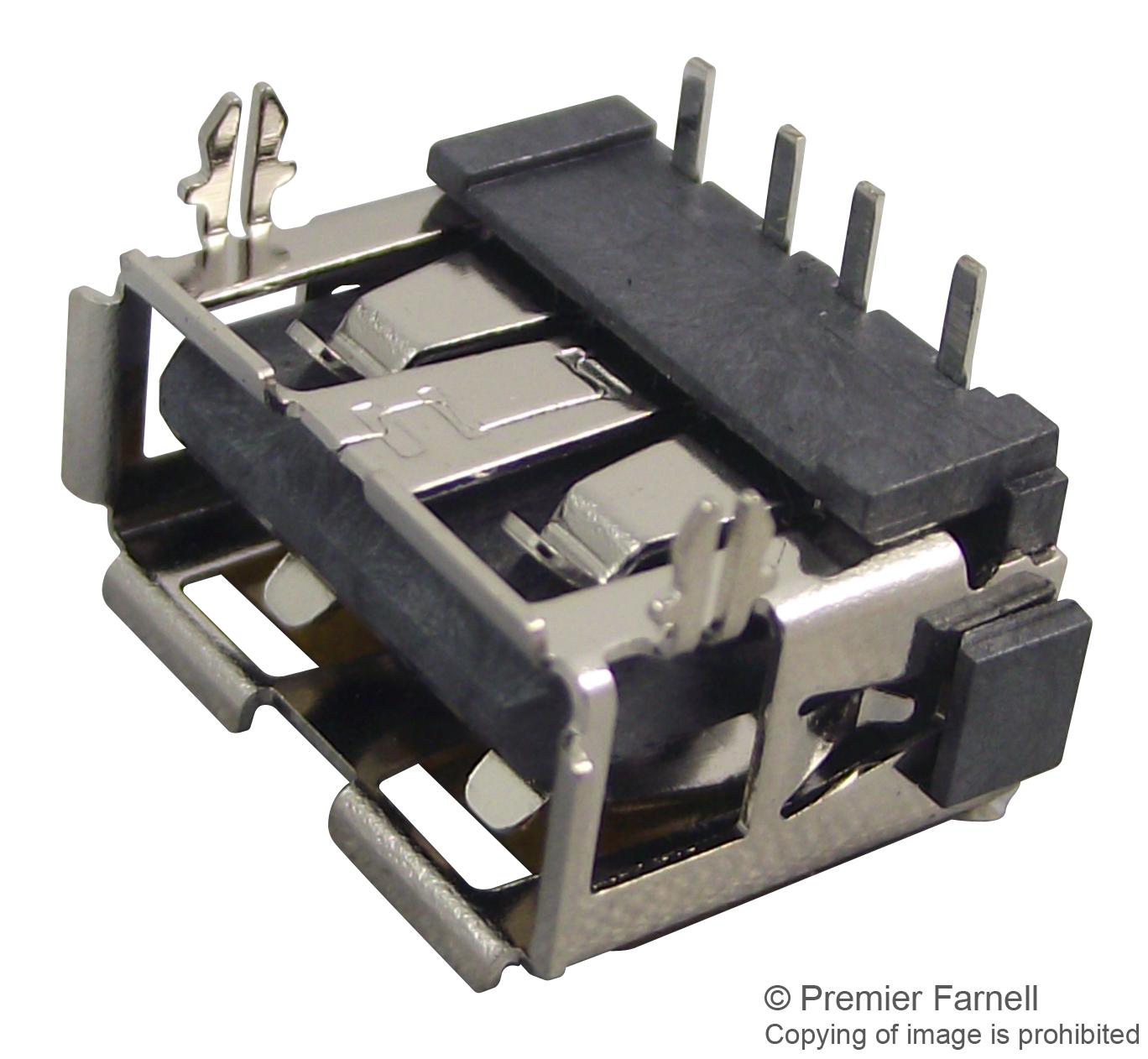

WURTH ELEKTRONIK 614104150121 USB Type-A Connector
This right-angle, through-hole USB Type-A connector ensures reliable connections with gold-plated copper alloy contacts and a durable PA6T insulator, supporting up to 1500 mating cycles. Designed for computer peripherals and electronic devices, it features a 4-pin configuration, high insulation resistance over 100 megaohms, and contact resistance of just 30 milliohms. Its black color, lead-free compliance, and compatibility with JEDEC wave soldering make it ideal for high-quality, durable, and environmentally friendly electronic assemblies operating within -40°C to +85°C environments.
WURTH ELEKTRONIK 614104150121 USB Type-A Connector Specifications:
- Material: PA6T insulator with copper alloy contacts
- Contact Plating: Gold
- Number of Pins: 4
- Color: Black
- Mating Cycles: 1500
- Insulation Resistance: >100 MΩ
- Contact Resistance: 30 mΩ max
- Operating Temperature: -40°C to +85°C
- Contact Type: Stamped
- Soldering Method: JEDEC lead-free wave soldering
- Certification: RoHS compliant
- Max Working Voltage: 30 VAC
- Current Rating: 1.5 A
- Shielding: Brass Ni plated
- Flammability Rating: UL94-VO
Buy the Wirth Elektronik Series USB Type-A Connector: 614104150121
Purchase the Wirth Elektronik Series USB Type-A Connector with gold-plated contacts and robust construction today online. Designed for durability with 1500 mating cycles, this connector supports high insulation resistance and is compliant with RoHS standards. Its right-angle, through-hole design makes it ideal for space-saving electronic applications, providing reliable connections in computers and peripherals. Enjoy quick ordering, trusted quality, and seamless integration into your production line, ensuring your electronic devices meet demanding reliability standards effortlessly.
Order your Wirth Elektronik Series USB Type-A Connector 614104150121 today and give your projects the dependable quality they deserve, ensuring reliable and long-lasting connections for your electronic devices.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 614104150121?
You can click on the BUY or RFQ button to purchase 614104150121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 614104150121?
You can download the 614104150121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 614104150121?
WURTH ELEKTRONIK
