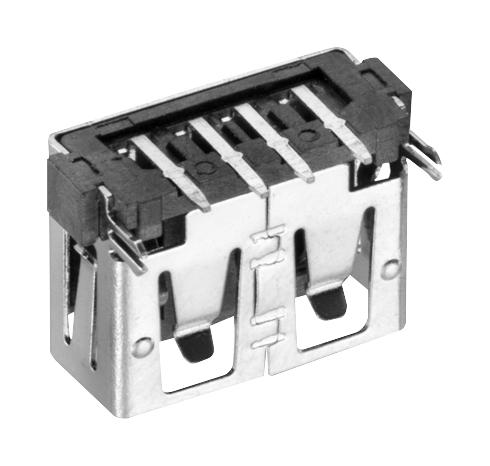

WURTH ELEKTRONIK 614104190121 USB Connector
This USB Type A horizontal short PCB connector features a sleek black LCP insulator, gold-over-Ni contact plating, and stainless steel cover material. Designed for reliable electrical performance, it supports a current rating of 1.54A and maximum working voltage of 30 VAC. With a high number of mating cycles (5,000), this connector ensures durability and stability in industrial applications. It is halogen-free, RoHS compliant, and withstands temperatures from -55°C to +85°C, making it ideal for various electronic device integrations and automation systems.
WURTH ELEKTRONIK 614104190121 USB Connector Specifications:
- Material: LCP insulator, stainless steel cover, copper alloy contact
- Contact Plating: Gold over Ni
- Flammability Rating: UL94-VO
- Color: Black
- Operating Temperature: -55°C to +85°C
- Current Rating: 1.54A
- Working Voltage: 30 VAC MAX
- Withstanding Voltage: 500 VAC/MIN
- Insulation Resistance: > 1000 MΩ
- Contact Resistance: 30 mΩ MAX
- Insertion Force: 35.0N MAX
- Extraction Force: 10.0N MIN
- Soldering: JEDEC Lead-Free Wave Soldering
- Packaging: Tape & reel with Mylar
- Compliance: RoHS, Halogen-Free
- Connector Type: USB Type A Horizontal Short
- Design: General tolerance, 2-3 slot, compatible with PCB layout
- Dimensions: Length varies, typical 11.5 mm width/height approximately 9.1 mm, hole pitch 12.8 mm
Buy the Wurth Elektronik 614104190121 – Reliable USB Type A Horizontal Connector for Industrial Applications
Order the USB connector now to enhance your electronic projects with durable, high-quality connections. This connector offers excellent electrical performance, long-lasting durability, and RoHS compliance, making it suitable for industrial applications. Easy to install with standard soldering methods, it supports up to 1.54A current and withstands temperatures from -55°C to +85°C, ensuring reliable operation in demanding environments. Secure your supply chain by purchasing online today for prompt delivery and expert support.
Buy Wurth Elektronik 614104190121 now and experience unmatched reliability and performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 614104190121?
You can click on the BUY or RFQ button to purchase 614104190121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 614104190121?
You can download the 614104190121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 614104190121?
WURTH ELEKTRONIK
