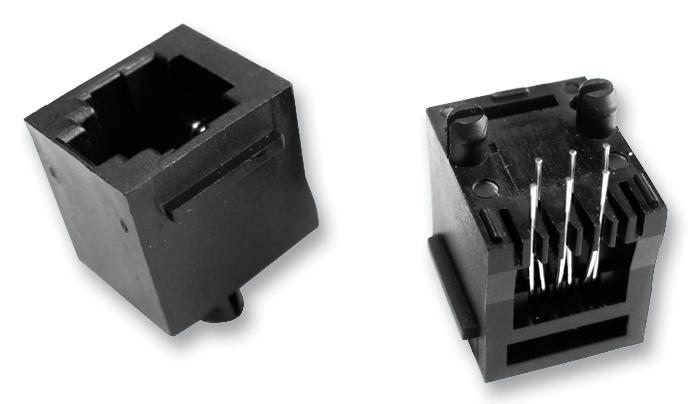

WURTH ELEKTRONIK 615006138521 Modular Jack Connector
The Wurth Elektronik 615006138521 is a 6-position / 6-contact horizontally oriented female modular jack with an ear plug. It features a working voltage of 120 VAC, a dielectric withstanding voltage of 1000 VAC for one minute, and a rated current of 1.5 A. Made from glass-filled PBT with UL94 V-0 flammability rating, it has copper alloy contacts with selective gold plating for reliable connections. The jack is UL recognized, with an insulation resistance exceeding 500 MΩ. It is suitable for industrial applications.
WURTH ELEKTRONIK 615006138521 Modular Jack Connector Specifications:
- Number of Pins: 6P6C
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insulation Material: Glass-filled PBT
- Flammability Rating: UL94V-0
- Operating Temperature: -40°C to +85°C
- Working Voltage: 120 VAC
- Withstanding Voltage: 1000 VAC for 1 min
- Rated Current: 1.5 A
- Contact Resistance: Max 20 mohm
- Insulation Resistance: Min 500 Mohm
- Durability: 500 mating cycles
- Color: Black
- UL Recognition: Yes
Buy the Wurth Series Modular Jack: 615006138521
Order the Wurth Elektronik 615006138521 modular jack online today to ensure dependable connections in your industrial and electronic projects. Designed with durable copper contacts and a flame-retardant PBT housing, this 6P6C connector features gold plating for excellent conductivity and resistance to corrosion. Its UL recognition guarantees safety and reliability, while its robust construction supports up to 500 mating cycles. Perfect for diverse electronic applications, this modular jack offers quick installation and proven performance. Purchase online now to improve your device’s connectivity and ensure seamless operation.
Get Wurth Elektronik 615006138521 today—built for reliable connections and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 615006138521?
You can click on the BUY or RFQ button to purchase 615006138521 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 615006138521?
You can download the 615006138521 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 615006138521?
WURTH ELEKTRONIK
