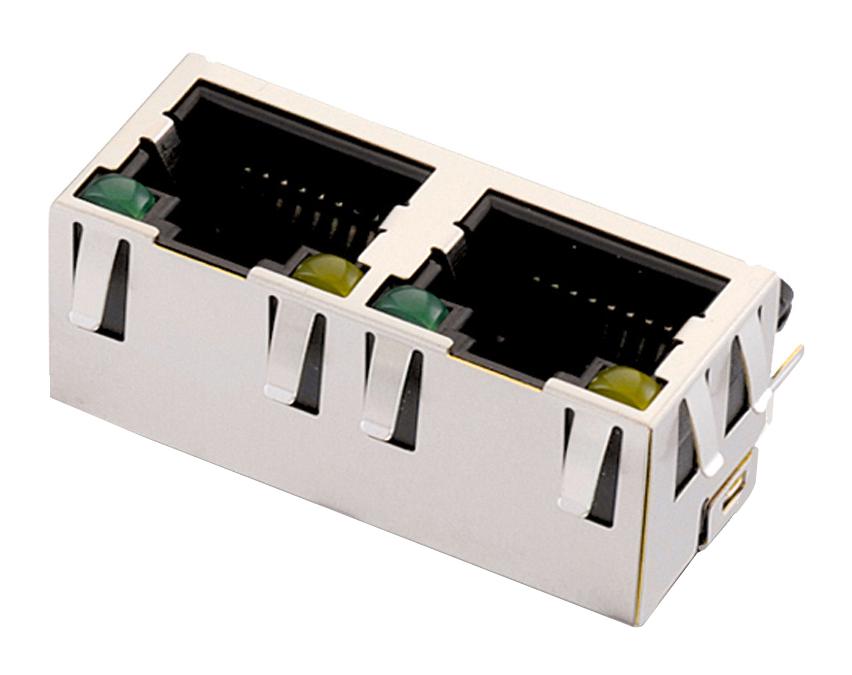

WURTH ELEKTRONIK 615016137721 Modular Jack Tab Up
The Würth Elektronik WR-MJ Modular Jack (Part Number 615016137721) is a robust 8P8C connector designed for a variety of electronic applications. Its horizontal shielded design, combined with a dual port configuration and integrated LED, provides enhanced signal integrity and visual indication. The EMI panel finger helps to minimize electromagnetic interference, ensuring reliable performance in noisy environments. Constructed with copper alloy contacts and selective gold plating, this connector offers excellent conductivity and corrosion resistance. Suitable for general electronic equipment, it is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 615016137721 Modular Jack Tab Up Specifications:
- Number of Pins (xPxC): 8P8C
- Durability: 500 Mating cycles
- LED (Left-Right): yellow-green
- Insulator Material: PBT
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Contact Material: Copper Alloy
- Contact Plating: Selective Gold
- Contact Type: Stamped
- Shielding Material: Bronze
- Shielding Plating: Nickel
- Peak Wavelength (Green): 565 nm
- Luminous Intensity (Green): 15 mcd
- Spectral Bandwidth (Green): 10 nm
- Forward Voltage (Green): 2.23 V
- Peak Wavelength (Yellow): 578 nm
- Luminous Intensity (Yellow): 12 mcd
- Spectral Bandwidth (Yellow): 10 nm
- Forward Voltage (Yellow): 2.1 V
- Operating Temperature: -40 up to +85 °C
- Rated Current: 1.5 A
- Working Voltage: 20 V (AC)
- Withstanding Voltage: 1000 V (AC)
- Contact Resistance: 20 mΩ
- Insulation Resistance: 500 MΩ
- REACh Approval: Conform
- UL Approval: E324776
- Power Dissipation (Green): 50 mW
- Power Dissipation (Yellow): 50 mW
- Peak Forward Current (Green): 100 mA
- Peak Forward Current (Yellow): 100 mA
- Continuous Forward Current: 30 mA
- Leakage Current: 10 µA
- Reverse Voltage: 5 V
