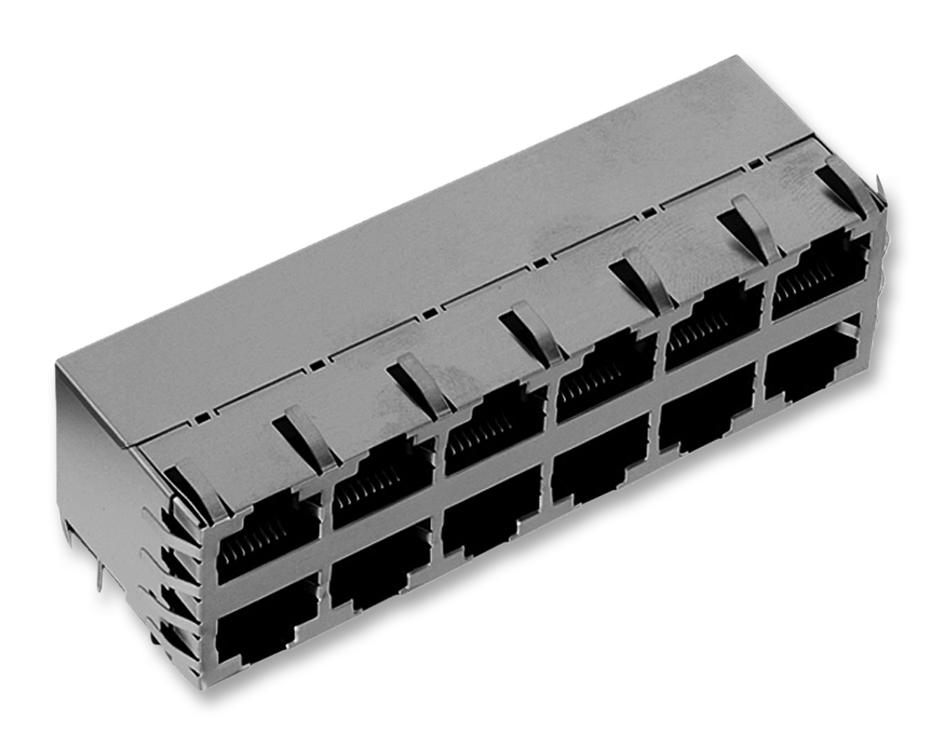

WURTH ELEKTRONIK 615096243321 Modular Jack
The WR-MJ Modular Jack Tab Up & Down is an electronic connector designed for reliable connection in electronic equipment. It features a compact design with a tab UP and DOWN configuration, optimized for modular applications. Made with copper alloy contacts plated with selective gold for durability, it supports 1.5 A current and 120 V AC voltage. The connector is UL94 V-0 rated, ensuring high flammability safety standards. Suitable for various configurations, it withstands temperatures from -40°C to +85°C, providing excellent mechanical and electrical performance in demanding environments.
WURTH ELEKTRONIK 615096243321 Modular Jack Specifications:
- Contact Material: Copper Alloy
- Contact Plating: Selective Gold
- Insulator Material: PAST
- Insulator Flammability Rating: UL94 V-0
- Operating Temperature: -40°C to +85°C
- Rated Current: 1.5 A
- Working Voltage: 120 V (AC)
- Withstanding Voltage: 1000 V (AC, 1 min)
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 500 MΩ
- Durability: 500 mating cycles
- Certification: RoHS Approved, REACh Compliant
Buy the Wirth Elektronik WR-MJ – Reliable Modular Jack for Industrial Applications
Purchase the Wirth Elektronik WR-MJ Modular Jack online today to enjoy reliable, high-quality connections for your electronic equipment. Featuring gold-plated contacts and a robust design, this connector supports up to 1.5 A at 120 V AC, ideal for demanding industrial and electronic applications. Its UL94 V-0 rated insulator ensures safety, while its excellent durability guarantees long-term use with up to 500 mating cycles. Easy to install and suitable for diverse configurations, this modular jack enhances your project's reliability and performance. Shop now and upgrade your electronic assemblies with trusted quality!
Order your Wirth Elektronik WR-MJ Series Modular Jack today and ensure dependable connections for your electronic projects with high-quality standards.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 615096243321?
You can click on the BUY or RFQ button to purchase 615096243321 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 615096243321?
You can download the 615096243321 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 615096243321?
WURTH ELEKTRONIK
