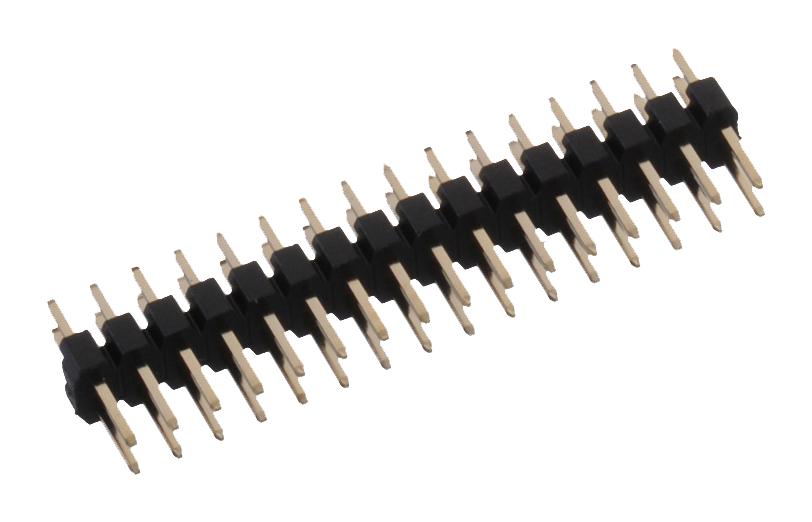

WURTH ELEKTRONIK 62002421121 THT Straight Dual Pin Header
The Würth Elektronik WR-PHD 62002421121 is a through-hole (THT) straight dual pin header designed for secure and reliable connections in a wide range of electronic applications. Constructed with a copper alloy contact material and gold plating, this header ensures excellent conductivity and corrosion resistance. The PA9T insulator material provides robust insulation and flame retardancy (UL94 V-0). It is suitable for general electronic equipment and is not intended for use in safety-critical applications without proper evaluation. The header's design facilitates easy integration into printed circuit boards, contributing to efficient assembly processes.
WURTH ELEKTRONIK 62002421121 THT Straight Dual Pin Header Specifications:
- Dimensions_L: 2
- Dimensions_Pl: 2
- Dimensions_tolerance_L: ±0.40
- Dimensions_tolerance_Pl: ±0.20
- Recommended_Hole_O: 0.8
- Pattern_l: 2
- Pin_to_Pin_Middle: 22
- Pitch_P: 2
- Durability: 25 Mating cycles
- Insulator_Material: PA9T
- Insulator_Flammability_Rating: UL94 V-0
- Insulator_Color: Black
- Contact_Material: Copper Alloy
- Contact_Plating: Gold
- Contact_Type: Stamped
- Operating_Temperature: -40 to +105 °C
- Rated_Current_IR: 2 A
- Working_Voltage: 200 V (AC)
- Withstanding_Voltage: 500 V (AC)
- Contact_Resistance_R: 20 mΩ
- Insulation_Resistance_RISO: 1000 MΩ
- RoHS_Approval: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- UL_Approval: E323964
