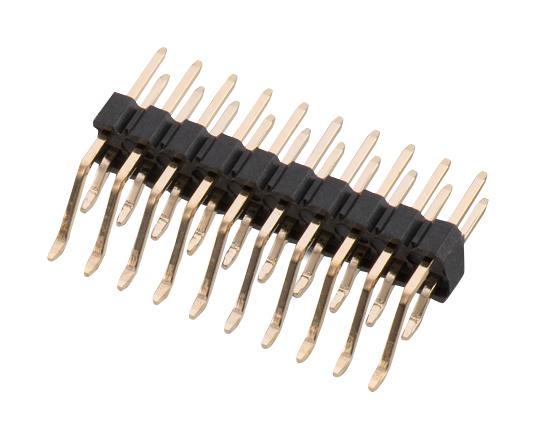

WURTH ELEKTRONIK 621310284521 SMT Connector
The WURTH WR-PHD SMT Angled Dual Pin is a high-quality, gold-plated copper alloy connector designed for reliable electrical connections in electronic assemblies. It features a compact profile with an 8 mm pin-to-pin distance and a 2 mm pitch, suitable for surface-mount technology in various electronic devices. Certified for RoHS, UL, and REACH standards, it endures up to 500 mating cycles, operates within -40°C to +105°C, and supports a rated current of 2 A at 200 VAC. Its durable construction ensures consistent performance in demanding environments, making it ideal for automation, control systems, and communication equipment.
WURTH ELEKTRONIK 621310284521 SMT Connector Specifications:
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PAST
- Flammability Rating: UL94 V-0
- Rated Current: 2 A
- Working Voltage: 200 VAC
- Withstanding Voltage: 500 VAC for 1 min
- Contact Resistance: Max 20 mΩ
- Insulation Resistance: Min 1000 MΩ
- Temperature Range: -40°C to +105°C
- Number of Mating Cycles: 500
- Pitch: 2 mm
- Pin to Pin (middle): 8 mm
- Size (approximate): Length 6 mm, Width 8 mm
- Certifications: RoHS, UL, REACH
- Package: Reel for surface-mount technology
- Standards Compliance: IEC, RoHS, UL, REACH
Buy the WURTH Series WR-PHD SMT: 621310284521
Purchase the high-quality WURTH Series WR-PHD SMT Angled Dual Pin connector online today. Featuring gold-plated copper contacts, it offers dependable electrical performance, compatibility with surface-mount technology, and supports up to 500 mating cycles. Certified for RoHS, UL, and REACH, it operates reliably across a temperature range of -40°C to +105°C, making it ideal for automation, communication, and control systems. Ensure your electronic projects use proven, durable connectors that deliver consistent, long-lasting connections—buy now for fast, secure online ordering.
Order your WURTH Series WR-PHD SMT Angled Dual Pin today and ensure reliable, high-performance electronic connections for your projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 621310284521?
You can click on the BUY or RFQ button to purchase 621310284521 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 621310284521?
You can download the 621310284521 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 621310284521?
WURTH ELEKTRONIK
