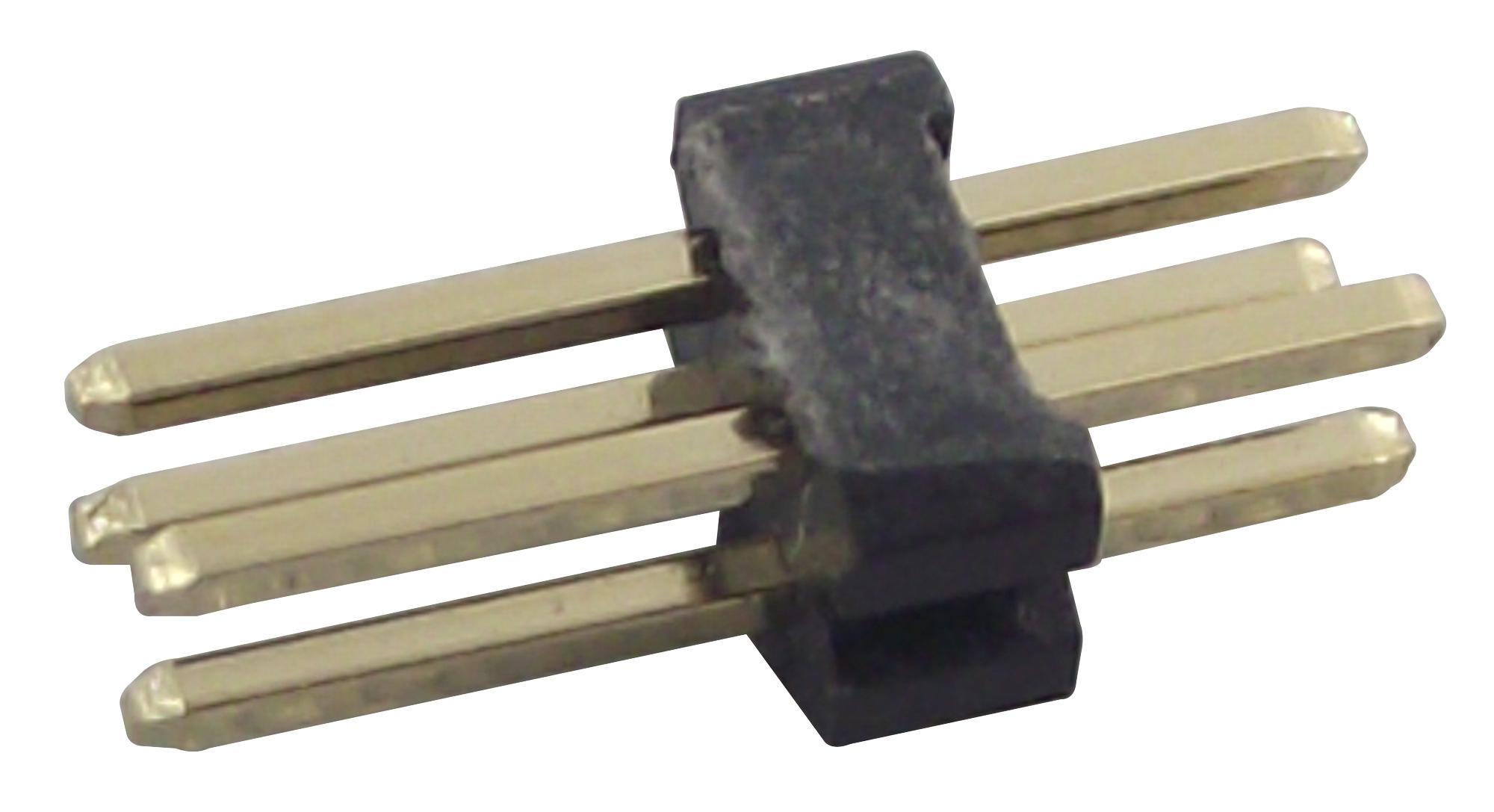

WURTH ELEKTRONIK 62200821121 Dual Pin Header
The WR-PHD THT Straight Dual Pin is a high-reliability, gold-plated header designed for electronic applications requiring robust connectivity. It features a 1.27 mm pitch, 8 pins, and a durable stamped contact material. Suitable for low-current signals up to 1 A and operating within -40°C to +105°C, it complies with RoHS and UL standards. Its precise dimensions and secure pin-to-pin spacing make it ideal for general electronic equipment and automation systems, providing dependable connections in compact designs.
WURTH ELEKTRONIK 62200821121 Dual Pin Header Specifications:
- Pitch P 1.27 mm
- Pins 8
- Pin to Pin (Middle) PL 3.81 mm
- Length L 5.08 mm
- Operating Temperature -40°C to +105°C
- Rated Current Ip 1 A
- Working Voltage 100 V
- Contact Resistance Max. 20 mΩ
- Insulation Resistance Min. 1000 MΩ
- Contact Material Copper Alloy
- Contact Plating Gold
- Insulator Flammability Rating UL94V-0
- Durability 500 Mating cycles
- Certification RoHS, UL
Buy the Buy Wurth Electronics WR-PHD THT Straight Dual Pin Part Number 62200821121 Online
Purchase the Wurth Electronics WR-PHD THT Straight Dual Pin online today. Designed for dependable electronic connections, it features 8 gold-plated contacts with a 1.27 mm pitch, suitable for general equipment and automation. Operating from -40°C to +105°C, it offers a rated current of 1 A and a contact resistance max of 20 mΩ. Its compact dimensions and certification ensure quality and safety for your projects. Buy now for fast delivery and reliable performance.
Order your Wurth Electronics WR-PHD THT Straight Dual Pin 62200821121 today and ensure reliable connections with this durable, gold-plated header for electronic projects.
