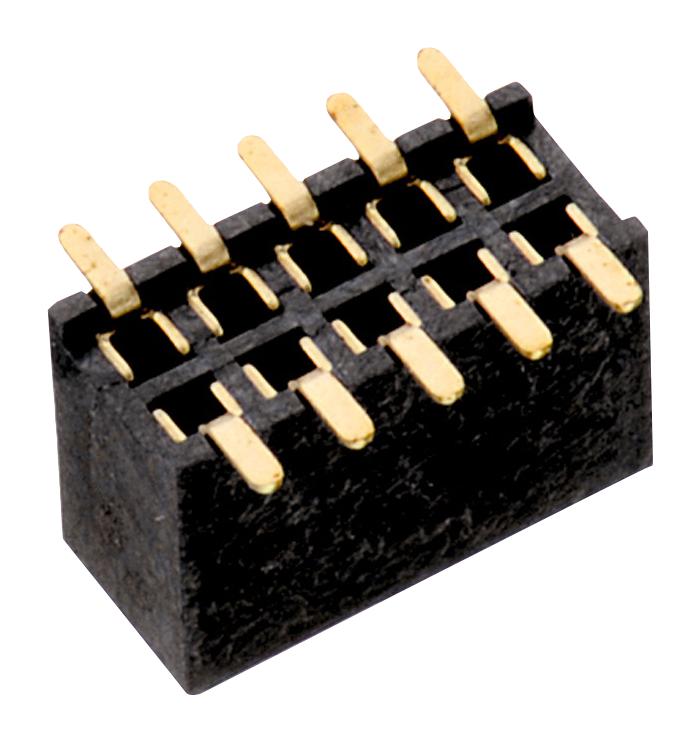

WURTH ELEKTRONIK 62331021021 Dual Socket Header
The Dual Socket Header WR-PHD by Wurth Elektronik is a high-quality, 1.27mm pitch SMT component designed for reliable connections in electronic assemblies. Featuring copper alloy contacts with gold plating, UL94V-0 rated insulators, and a durability of 500 mating cycles, it ensures long-lasting performance. Operating within -40°C to +105°C, it supports rated currents of 1A and working voltages up to 100V. Suitable for compact, high-density electronic designs, this connector offers stable, secure connectivity in various industrial and consumer applications.
WURTH ELEKTRONIK 62331021021 Dual Socket Header Specifications:
- Pitch: 1.27 mm
- Pins: 10
- Pin-to-Pin (Middle): 5.08 mm
- Length: 6.75 mm
- Material: Copper alloy contact with gold plating
- Insulator Material: PAST, Flammability rating UL94V-0, Color: Black
- Operating Temperature: -40°C to +105°C
- Rated Current: 1 A
- Working Voltage: 100 V AC
- Withstanding Voltage: 500 V for 1 minute
- Contact Resistance: Max 20 mΩ
- Insulation Resistance: Min 1000 MΩ
- Durability: 500 mating cycles
- Soldering Profile: Max preheat temperature 200°C, Max ramp rate 3°C/sec, Peak temperature 260°C
- Storage Temp: Should be used within 12 months from shipment
- Certifications: RoHS compliant, REACH conform, UL approved
Buy the Wurth Series Dual Socket Header: 62331021021
Purchase the Wurth Elektronik Dual Socket Header 62331021021 online today and ensure reliable, high-performance connections for your electronic projects. This high-quality SMT connector features a 1.27mm pitch, gold-plated copper alloy contacts, and is rated for 1A current and 100V working voltage, making it ideal for industrial, automation, and consumer electronics. Its durability of 500 mating cycles guarantees long-term performance, while UL94V-0 rated insulators add safety. Simple to solder with specified reflow profiles, this component is essential for compact, high-reliability designs. Order now to experience superior connection quality.
Get Wurth Elektronik Dual Socket Header 62331021021 today—built for precision and long-lasting durability in electronic connections.
