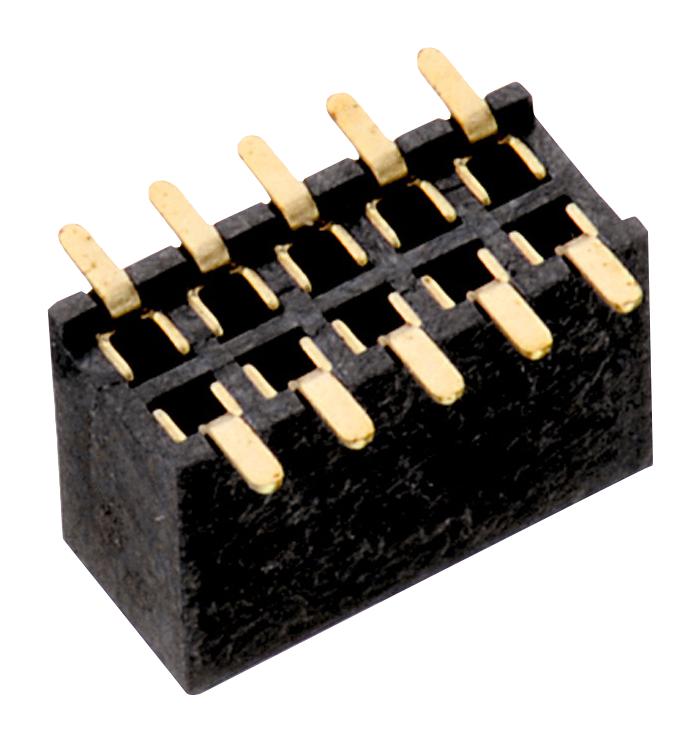

WURTH ELEKTRONIK 62332821021 Dual Socket Header
Dual Socket Header designed for SMT applications with a pitch of 1.27mm, rated for 500 mating cycles. Constructed from copper alloy with gold plating, rated for temperatures from -40°C to +105°C, and compliant with RoHS and UL standards. Features include high durability, precise pin-to-pin spacing of 16.51mm, and a compact design suitable for high-density electronic assemblies. Ideal for use in various electronic modules requiring reliable electrical connections and mechanical stability, such as industrial equipment and control systems.
WURTH ELEKTRONIK 62332821021 Dual Socket Header Specifications:
- Pitch: 1.27 mm
- Pins: 28
- Pin to Pin (Middle): 16.51 mm
- Length: 18.18 mm
- Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PAST
- Flammability Rating: UL94V-0
- Operating Temperature: -40°C to +105°C
- Rated Current: 1 A
- Working Voltage: 100 V
- Withstanding Voltage: 500 V for 1 min
- Contact Resistance: Max 20 mΩ
- Insulation Resistance: Min 1000 MΩ
- Durability: 500 mating cycles
- Compliance: RoHS, UL
Buy the Buy WURTH Dual Socket Header Part Number 62332821021 Online
Purchase the WURTH Dual Socket Header with part number 62332821021 online today. This high-quality connector features a compact 1.27mm pitch, gold-plated copper contacts, rated for temperatures from -40°C to +105°C, and supports 500 mating cycles for long-term reliability. Ideal for industrial and control applications, it ensures stable, precise connections in high-density layouts. Order now to enjoy quick delivery and secure online shopping, guaranteeing performance and reliability for your electronic projects.
Buy WURTH 62332821021 dual socket header now and ensure reliable high-density electronic connections with proven durability and precise dimensions.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 62332821021?
You can click on the BUY or RFQ button to purchase 62332821021 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 62332821021?
You can download the 62332821021 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 62332821021?
WURTH ELEKTRONIK
