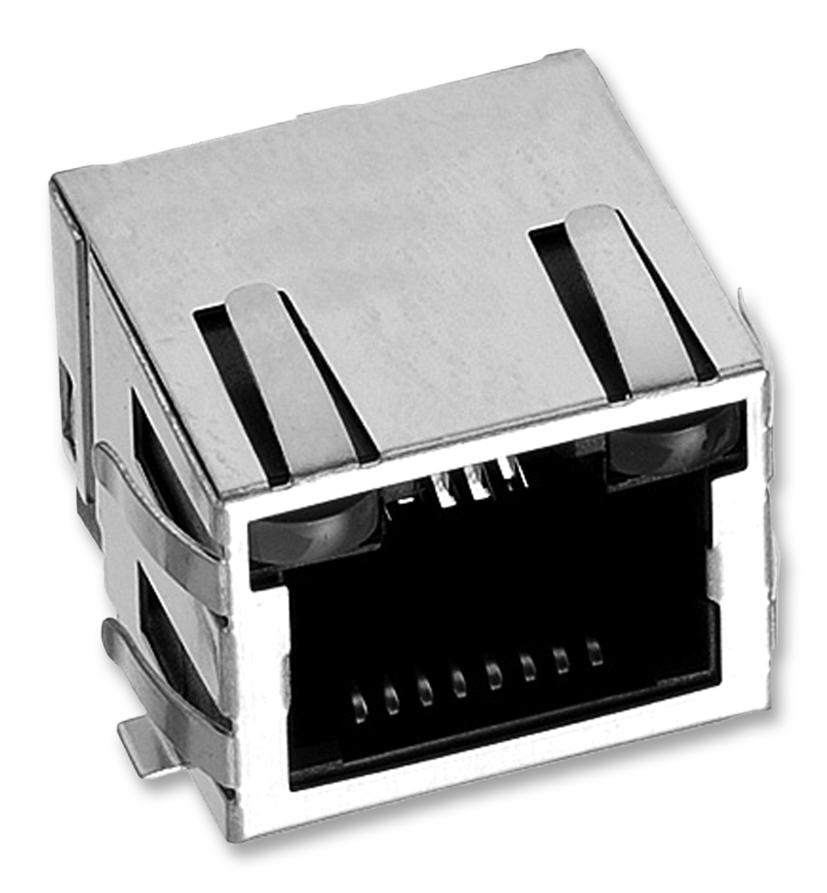

WURTH ELEKTRONIK 634008137521 Shielded EMI Panel
This is a shielded surface-mount device with integrated LED and EMI panel, designed for use in electronic assemblies requiring reliable electrical performance and optical indicators. It features inherent EMI shielding, a robust construction suitable for high-reliability applications, and is compliant with RoHS and UL safety standards. The component is manufactured by Wurth Elektronik, suitable for complex electronic systems that demand precise assembly, high durability, and effective signal integrity. Ideal for industrial, automation, and communication equipment requiring EMC compliance.
WURTH ELEKTRONIK 634008137521 Shielded EMI Panel Specifications:
- RoHS Approval: Yes (2011/65/EU&2015/863)
- UL Approval: £324776
- Durability: 500 mating cycles
- LED1 (Yellow): Peak wavelength 586-594 nm, Forward voltage 2.45 V, Viewing angle 285°
- LED2 (Green): Peak wavelength 566-574 nm, Forward voltage 2.45 V, Viewing angle 440°
- Contact Material: Copper Alloy with Gold Plating (~6 microns)
- Shielding Material: Brass with Nickel plating
- Operating Temperature: -40°C to +85°C
- Power Dissipation: 50 mW (Green & Yellow LED)
- Rated Current: 20 mA
- Working Voltage: 120 V AC
- Reverse Voltage: 5 V
- Insulation Resistance: 500 MΩ minimum
- Maximum Operating Temperature: 85°C
- Soldering Profile: Preheat 150-200°C, Max peak temp 260°C, Ramp rate 3°C/sec
Buy the Buy Wurth EMI Shielded Panel Part Number 634008137521 Online
Purchase the Wurth Elektronik EMI Shielded Panel with integrated LED and robust construction online today. This component offers superior EMI shielding, high durability over 500 mating cycles, and complies with RoHS and UL standards, making it ideal for industrial, automation, and communication devices that demand high reliability, electromagnetic compatibility, and visual indication. Easy to install and maintain, this panel ensures effective signal integrity and system safety in high-performance electronic applications, providing the best value for your advanced systems.
Get Wurth Elektronik EMI Shielded Panel with LEDs today—designed for high durability and reliable signal integrity in complex electronic systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 634008137521?
You can click on the BUY or RFQ button to purchase 634008137521 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 634008137521?
You can download the 634008137521 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 634008137521?
WURTH ELEKTRONIK
