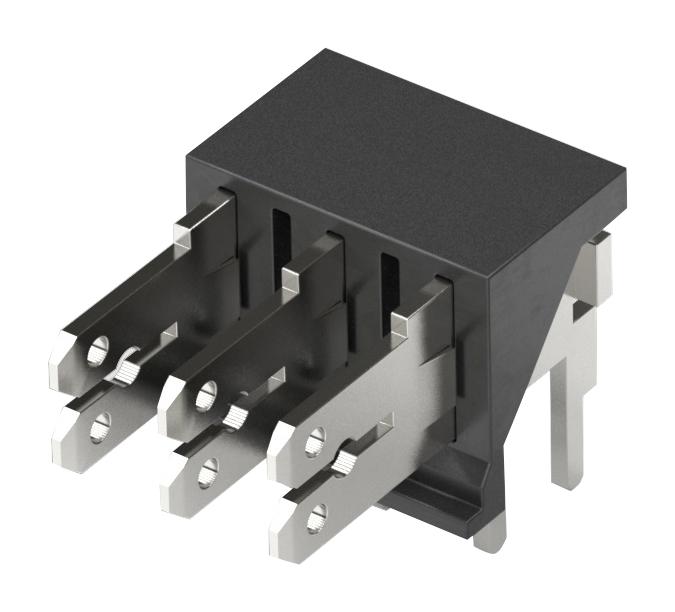

WURTH ELEKTRONIK 638207122003 Connector Header
The WR-FAST Male Right Angled Header Blade is a 5.08 mm pitch connector designed for secure electrical connections in electronic equipment. Made with steel contacts plated with tin, it offers durability for up to 500 mating cycles and tolerates operating temperatures from -30°C to +120°C. The insulator is black PC with UL94 V-0 flammability rating. Suitable for general electronics, it provides rated currents of 16 A and working voltages of 300 V with insulation resistance of 5 Mo and withstand voltage of 1600 V(AC). Certified compliant with RoHS, REACH, and suitable for wave soldering, it ensures reliable performance in various electronic assemblies.
WURTH ELEKTRONIK 638207122003 Connector Header Specifications:
- Pitch P: 5.08 mm
- Contact Material: Steel with Tin plating
- Number of Mating Cycles: 500
- Operating Temperature: -30°C to +120°C
- Rated Current: 16 A
- Working Voltage: 300 V (AC)
- Insulation Resistance: 5 Mo
- Withstanding Voltage: 1600 V (AC) for 14 min
- Contact Resistance: 20 mo
- Insulator Material: PC with UL94 V-0 flammability rating
- Insulator Color: Black
- Certifications: RoHS, REACH, IEC 60335-1 (Glow Wire), cULus
- Soldering Profile: Suitable for wave soldering at preheat min 100°C, max 130°C, peak 250-260°C
- Dimensional Tolerance: ±0.1 mm
Buy the Wurth Elektronik Series Connectors: WR-FAST Male Right Angled Header Blade 638207122003
Acquire the Wurth Elektronik WR-FAST Male Right Angled connector header now online to ensure secure, reliable electrical connections in your electronic projects. Designed with steel contacts plated with tin, it withstands up to 500 mating cycles and operates within -30°C to +120°C temperatures. Certified for RoHS, REACH, and glow wire standards, it is suitable for wave soldering processes, making it ideal for a wide range of electronic equipment. Enhance your assembly’s performance with this durable and compliant connector header, available for direct purchase online.
Buy Wurth Elektronik WR-FAST Male Right Angled connector now and experience unmatched reliability and performance for your electronic assemblies.
