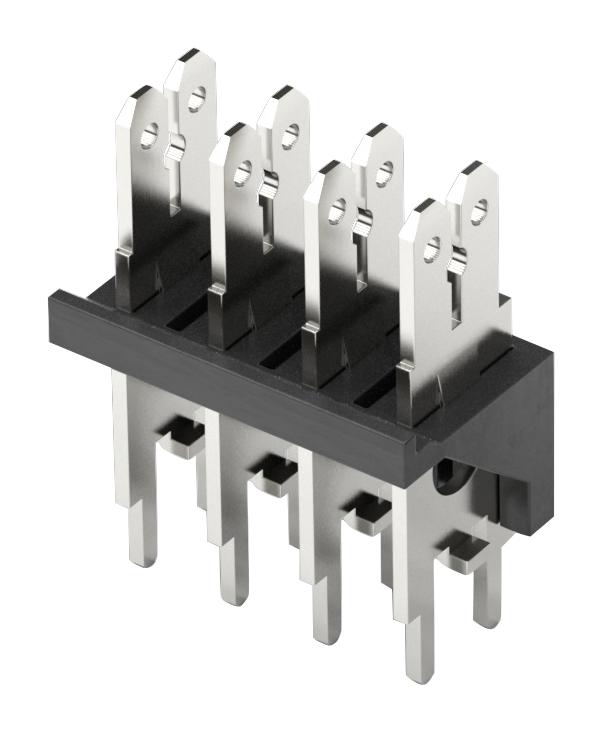

WURTH ELEKTRONIK 638207222005 Vertical Header
WURTH ELEKTRONIK WR-FAST male vertical header with 5.08 mm pitch is designed for reliable electrical connections in electronic equipment, featuring tin-plated steel contacts for enhanced durability. Suitable for applications requiring high mating cycles and operational stability up to 120°C, it includes a stamped contact type, UL94 V-0 flammability rating, and RoHS compliance. Its robust design, precise pin-to-pin spacing, and excellent insulation resistance make it optimal for electronic manufacturing, ensuring dependable performance in industrial automation, control systems, and electronic assemblies with easy installation and long service life.
WURTH ELEKTRONIK 638207222005 Vertical Header Specifications:
- Pitch P: 5.08 mm
- Pins: 5
- Pin to Pin (Middle): 20.32 mm
- Length: 24.44 mm
- Material: Steel with Tin plating
- Insulator Material: PC
- Flammability Rating: UL94 V-0
- Contact Resistance: 20 mo
- Rated Current: 16 A
- Working Voltage: 300 VAC
- Insulation Resistance: 5 Mo
- Withstanding Voltage: 1600 VAC for 1 min
- Durability: 500 mating cycles
- Operating Temperature: -30°C to +120°C
- Certification: RoHS, REACH, cULus
- Soldering Profile: Preheat 100°C min, peak temperature 260°C, 70 sec preheat, controlled ramp-up and ramp-down rates
- Packaging: Carton dimensions vary, optimized for electronic manufacturing
Buy the WURTH ELEKTRONIK 638207222005 – Reliable Vertical Header for Industrial Applications
Purchase the WURTH ELEKTRONIK vertical header online today—engineered for dependable electrical connections in industrial and electronic equipment. Featuring high durability, tin-plated steel contacts, and RoHS compliance, this component ensures reliable performance in various applications like automation, control systems, and manufacturing electronics. Its precise 5.08 mm pitch and robust design support high mating cycles and temperature ranges up to 120°C. Ordering online guarantees quick delivery and consistent quality, making it the ideal choice for professional electronics assembly and maintenance tasks.
Get WURTH ELEKTRONIK 638207222005 today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 638207222005?
You can click on the BUY or RFQ button to purchase 638207222005 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 638207222005?
You can download the 638207222005 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 638207222005?
WURTH ELEKTRONIK
