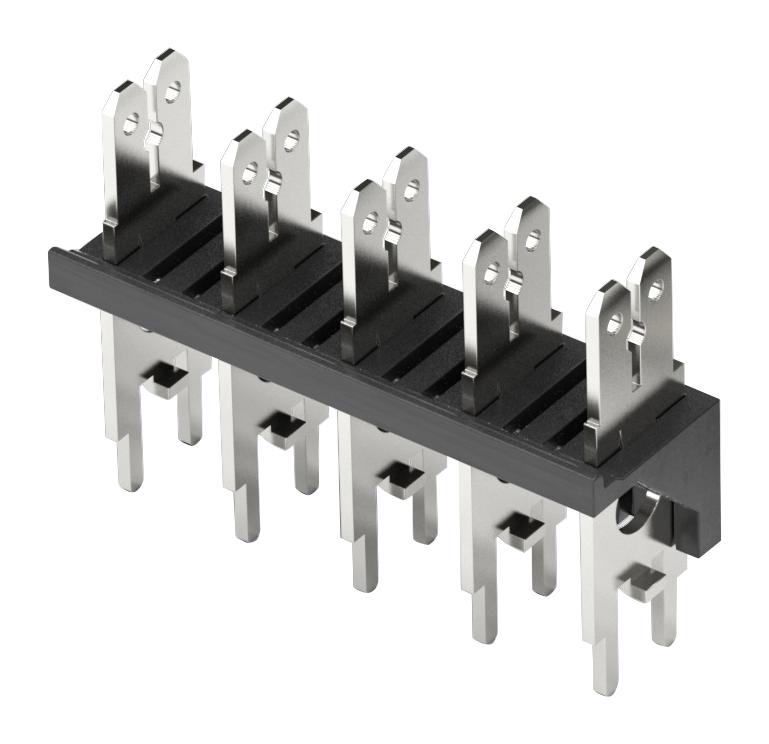

WURTH ELEKTRONIK 638307222006 Male Vertical Header
The Würth Elektronik WR-FAST 638307222006 is a robust male vertical header designed for secure and reliable connections in electronic assemblies. This header features 6 pins arranged at a 7.62mm pitch, providing ample spacing for various circuit designs. The tin-plated contacts ensure excellent conductivity and corrosion resistance. It is suitable for applications in general electronic equipment and is RoHS compliant. However, it is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 638307222006 Male Vertical Header Specifications:
- Pins: 6
- Pin to Pin (Middle) pl: 38.1 mm
- Length L: 42.22 mm
- Insulator Material: PC
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Contact Material: Steel
- Contact Plating: Tin
- Contact Type: Stamped
- Durability: 500 Mating cycles
- Pitch P: 7.62 mm
- Operating Temperature: -30 up to +120 °C
- Rated Current IR: 16 A
- Working Voltage: 300 V (AC)
- Insulation Resistance RISO: 5 MΩ
- Withstanding Voltage: 1600 V (AC)
- Contact Resistance R: 20 mΩ
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Glow Wire Approval: Compliant [ IEC 60335-1 ]
- cULus Approval: E150931 [ Cat.N° : CQQ, CQS(3) ]
- Packaging Specification - Carton LC(mm): 370
- Packaging Specification - Carton WC(mm): 290
- Packaging Specification - Carton HC(mm): 150
- Packaging Unit: 500 pcs
- Packaging Material: Paper
