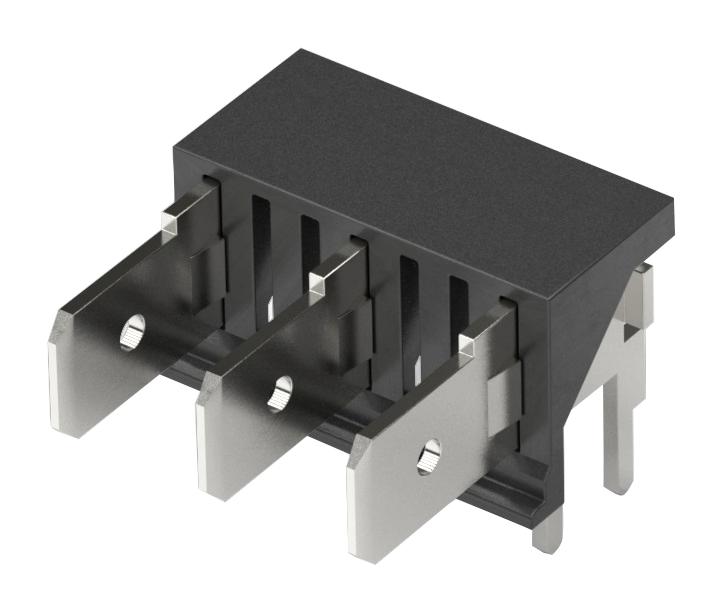

WURTH ELEKTRONIK 638363122002 Male Right Angled Header Blade
The Würth Elektronik 638363122002 is a male right-angled header blade designed for use in general electronic equipment. It is not intended for applications requiring high safety or reliability standards, such as military or medical devices. This connector offers a secure and efficient connection solution, suitable for a wide range of industrial and commercial applications. It is RoHS compliant and features a durable construction for long-lasting performance.
WURTH ELEKTRONIK 638363122002 Male Right Angled Header Blade Specifications:
- Pins: 2
- Length: 11.74
- Insulator Material: PC
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Contact Material: Steel
- Contact Plating: Tin
- Contact Type: Stamped
- Durability: 500 Mating cycles
- Pitch: 7.62
- Operating Temperature: -30 up to +120 °C
- Rated Current: 16 A
- Working Voltage: 300 V (AC)
- Insulation Resistance: 5 MΩ
- Withstanding Voltage: 1600 V (AC)
- Contact Resistance: 20 mΩ
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Glow Wire Approval: Compliant [ IEC 60335-1 ]
- cULus Approval: E150931 [ Cat.N° : CQQ, CQS(3) ]
- Recommended Hole: 6.3 ±0.1
- Pattern: pl ±0.2
- End: 7.62 ±0.1
- LC(mm): 370
- WC(mm): 290
- HC(mm): 150
- No. of Boxes: 10
- No. of pcs per board: 1000
- Packaging Unit Material: Paper
