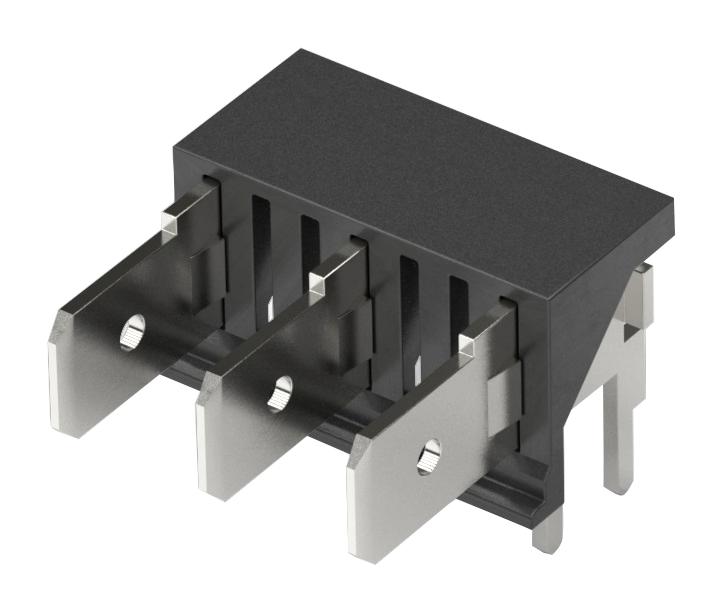

WURTH ELEKTRONIK 638363122008 Male Right Angled Header Blade
The Würth Elektronik 638363122008 is a male right-angled header blade designed for use in general electronic equipment. It is not intended for use in applications requiring high safety or reliability standards without specific agreements. This connector offers a secure and efficient connection solution, suitable for various industrial and commercial applications. It is RoHS compliant and features a durable design for long-lasting performance.
WURTH ELEKTRONIK 638363122008 Male Right Angled Header Blade Specifications:
- Recommended Hole: 1, 5.08 ±0.1, O 1.5 ±0.1
- Pattern Properties: pl ±0.2
- Pin to Pin (Middle): 53.34 mm
- Length: 57.46 mm
- Insulator Material: PC
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Contact Material: Steel
- Contact Plating: Tin
- Contact Type: Stamped
- Durability: 500 Mating cycles
- Pitch: 7.62 mm
- Operating Temperature: -30 up to +120 °C
- Rated Current: 16 A
- Working Voltage: 300 V (AC)
- Insulation Resistance: 5 MΩ
- Withstanding Voltage: 1600 V (AC)
- Contact Resistance: 20 mΩ
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Glow Wire Approval: Compliant [ IEC 60335-1 ]
- cULus Approval: E150931 [ Cat.N° : CQQ, CQS(3) ]
- Preheat Temperature Min: 100 °C
- Preheat Temperature Typical: 120 °C
- Preheat Temperature Max: 130 °C
