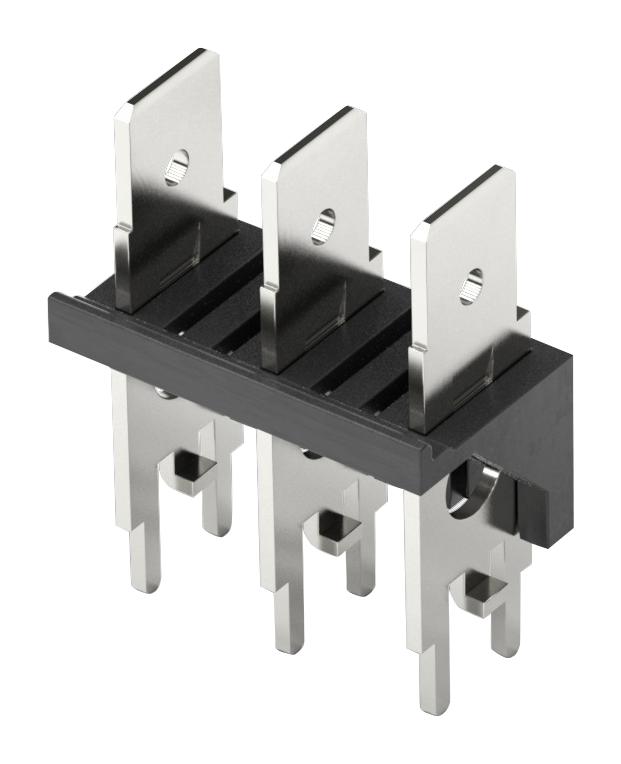

WURTH ELEKTRONIK 638363222008 Male Vertical Header Blade
The Würth Elektronik WR-FAST 638363222008 is a male vertical header designed for secure and efficient connections in a variety of electronic applications. This header features a blade design and a 7.62mm pitch, ensuring compatibility with standard spacing requirements. Constructed with a PC insulator and stamped steel contacts with tin plating, it offers excellent durability and corrosion resistance. It is RoHS compliant and suitable for general electronic applications, excluding those requiring high safety or reliability standards such as aerospace or medical equipment. The header is designed for usage in general electronic equipment only.
WURTH ELEKTRONIK 638363222008 Male Vertical Header Blade Specifications:
- Pin to Pin (Middle): 53.34 mm
- Length: 57.46 mm
- Insulator Material: PC
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Contact Material: Steel
- Contact Plating: Tin
- Contact Type: Stamped
- Durability: 500 Mating cycles
- Pitch: 7.62 mm
- Operating Temperature: -30 up to +120 °C
- Rated Current: 16 A
- Working Voltage: 300 V (AC)
- Insulation Resistance: 5 MΩ
- Withstanding Voltage: 1600 V (AC)
- Contact Resistance: 20 mΩ
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Glow Wire Approval: Compliant [ IEC 60335-1 ]
- cULus Approval: E150931 [ Cat.N° : CQQ, CQS(3) ]
- Packaging - Carton Length: 370 mm
- Packaging - Carton Width: 290 mm
- Packaging - Carton Height: 150 mm
- Pieces per Carton: 250
