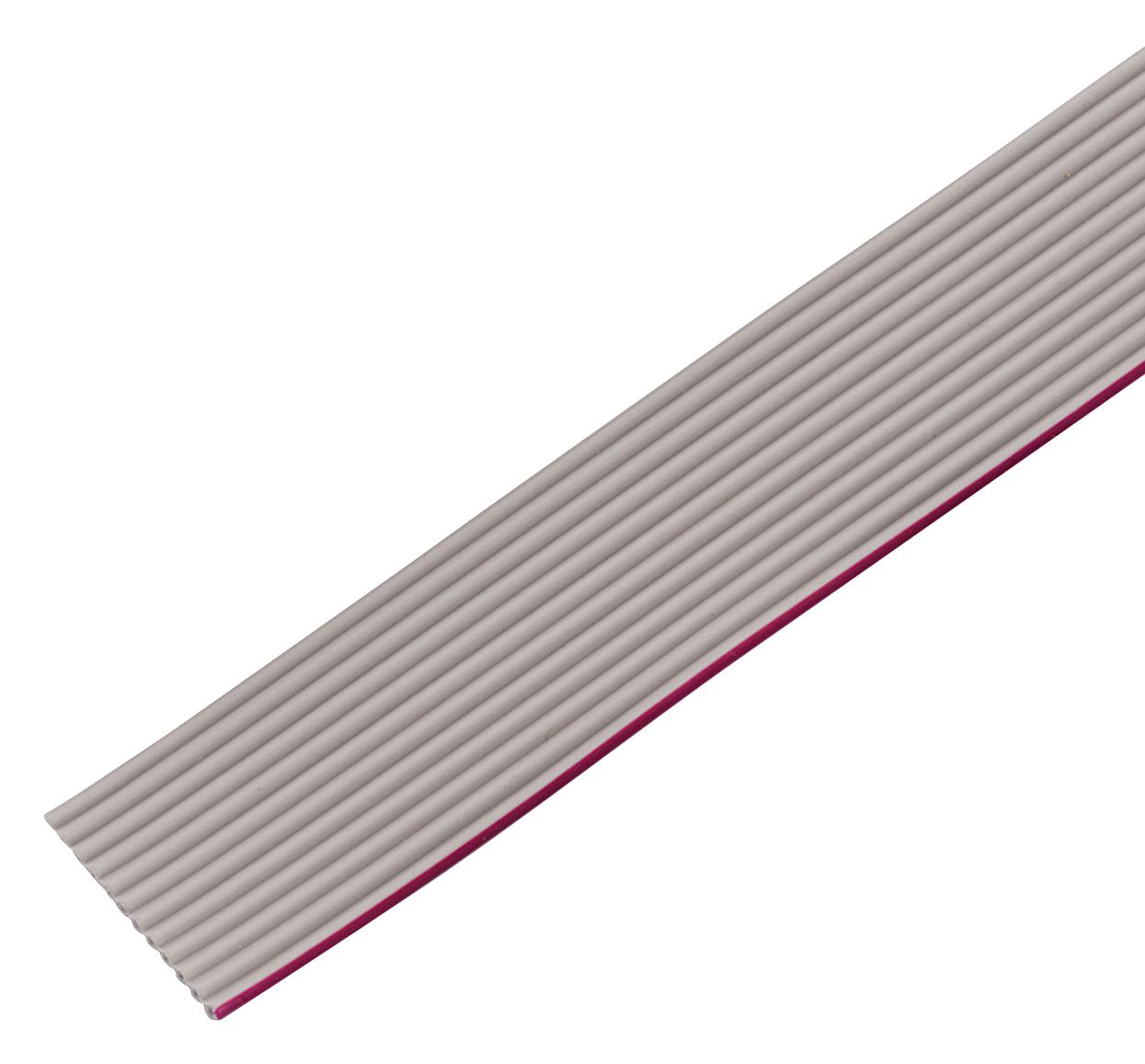

WURTH ELEKTRONIK 63916415521CAB Ribbon Flat Cable
The WURTH ELEKTRONIK 63916415521CAB is a 64-pin ribbon flat cable designed for use in general electronic equipment. It offers a compact and organized solution for connecting components, with a 1.27mm pitch and PVC insulation. This cable is RoHS compliant and suitable for a wide range of applications where reliable signal transmission is required. Care should be taken during potting or coating to avoid damage from shrinking or expansion of materials. Würth Elektronik requires written approval for use in high-reliability applications such as aerospace or medical devices.
WURTH ELEKTRONIK 63916415521CAB Ribbon Flat Cable Specifications:
- Pins: 64
- Pin to Pin (Middle): 80.01 mm
- Length: 81.28 mm
- Pitch: 1.27 mm
- Material Properties: PVC
- Conductor Material: Copper
- Conductor Plating: Tin
- Operating Temperature: -25 up to +105 °C
- Rated Current: 1 A
- Rated Voltage: 300 V (RMS)
- Insulation Resistance: 10 MΩ
- Stranded Wire Section (AWG): 28 (AWG)
- Number on Strand: 7
- Number on Conductor: 0.013 mm
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- cULus Approval: E328849
- Packaging: Bag
- Packaging Unit: 1 piece = 1 Meter
