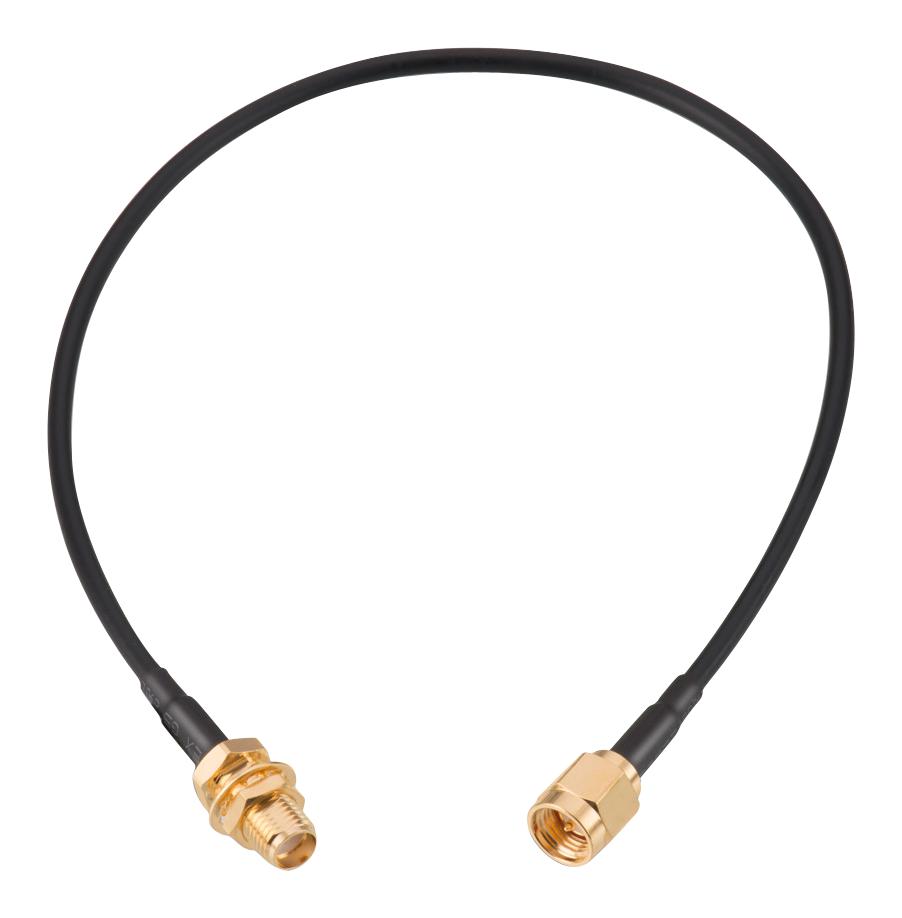

WURTH ELEKTRONIK 65503503215303 SMA RF Connector
The SMA straight connector set includes a plug and bulkhead jack designed for flexible coaxial cables like RG174. Made of brass with gold plating for superior conductivity and corrosion resistance, the connectors feature high-quality insulators and PTFE lock washers. Suitable for RF applications operating between -20°C and +80°C, these connectors provide impedance matching at 50Ω. Designed for durability, they withstand 500 mating cycles, with operating voltages up to 250 V RMS and a maximum of 750 V RMS. Ideal for precision electronic and RF testing setups, ensuring reliable performance with minimal signal loss.
WURTH ELEKTRONIK 65503503215303 SMA RF Connector Specifications:
- Connector Type: SMA straight plug and bulkhead jack
- Material: Brass with gold plating, min. 0.076um over Nickel
- Insulator Material: PTFE (white)
- Cable Type: Flexible coaxial, RG174
- Heat Shrink Tube Material: PE, black, 27 mm length
- Operating Temperature Range: -20°C to +80°C
- Impedance: 50Ω
- Withstanding Voltage: 500 V (AG) in 60 sec.
- Insulation Resistance: 1000 MΩ at 120 see.
- Mating Cycles: 500
- Cable Retention Force: 445 N min.
- Recommended Mating Torque: 57 N·m
- Gasket Material: Silicone, red
- Connector Dimensions: Not specified but designed for RF and high-frequency reliability
- Compliance: RoHS
- Attenuation: Approximately 0.25 dB at 1 GHz over 100 feet
- VSWR: Max 1.3 at 1 GHz
Buy the Wirth Elektronik Series SMA: 65503503215303
Buy your Wirth Elektronik Series SMA RF connector set online today for dependable performance in RF testing, antenna connections, and communication systems. Crafted from durable brass with gold plating, these connectors offer excellent electrical conductivity and corrosion resistance. They operate within a temperature range of -20°C to +80°C, withstand 500 mating cycles, and are suitable for flexible coaxial cables like RG174. Ideal for engineers and technicians seeking high-quality, reliable RF connectors that ensure minimal signal loss and consistent connections in demanding environments.
Order your Wirth Elektronik Series SMA connector set today and ensure reliable RF connections for your high-frequency projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 65503503215303?
You can click on the BUY or RFQ button to purchase 65503503215303 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 65503503215303?
You can download the 65503503215303 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 65503503215303?
WURTH ELEKTRONIK
