WURTH ELEKTRONIK 65503503615308 RF Connector

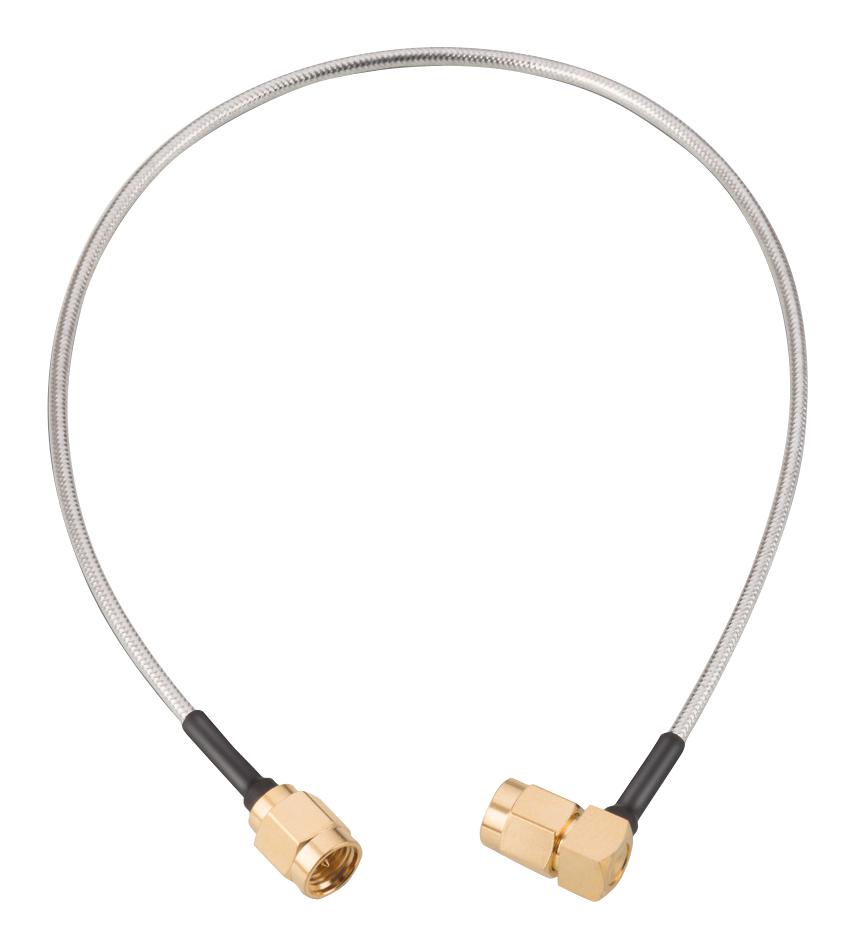

This SMA connector features a straight plug and right-angle design, crafted from high-quality brass with gold plating for optimal durability and conductivity. It utilizes a PIFE heat shrink tube for insulation, with a stainless steel retention ring for secure fastening. The connector operates within a temperature range of -65°C to +165°C and complies with ROHS standards. Suitable for general electronics and high-frequency applications up to 18 GHz, it ensures reliable impedance of 50 ohms with VSWR max 1.5 and low insertion loss of 0.87 dB. Its robust construction makes it ideal for RF, communication, and instrumentation systems requiring stable and precise connections.
WURTH ELEKTRONIK 65503503615308 RF Connector Specifications:
- Body Material: Brass
- Body Plating: Gold, min. 0.076 µm over Nickel
- Center Contact Material: Beryllium Copper
- Center Contact Plating: Gold, min. 0.76 µm over Nickel
- Heat Shrink Tube Material: PE
- Heat Shrink Tube Color: Black
- Insulator Material: PIFE
- Operating Temperature Range: -65°C to +165°C
- Impedance: 50 Ω
- VSWR: Max 1.5 at DC to 18 GHz
- Insertion Loss: Max 0.87 dB at DC to 18 GHz
- Max Working Voltage: 250 V RMS
- Withstanding Voltage: 500 V in 60 sec
- Mechanical: 500 mating cycles, contact retention min. 26.7 N
- Cable Type: Hand-Formable RF cable
- Dimensions: Not specified, standard RF connector size
- Compliance: ROHS
Buy the Wirth Elektronik Series SMA Connector: 65503503615308
Purchase the Wirth Elektronik SMA connector 65503503615308 online today and ensure seamless high-frequency signal transmission. Crafted with durable brass, gold-plated contacts, and reliable insulation, this connector handles frequencies up to 18 GHz with minimal insertion loss. Its robust construction and comprehensive specifications guarantee stable performance and long-term use in communication, instrumentation, and RF systems. Secure your equipment with a connector designed for precise, dependable connections, and enjoy fast, convenient online ordering for your professional needs.
Buy Wirth Elektronik SMA connector 65503503615308 now and experience high-frequency stability and reliable connections for your RF applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 65503503615308?
You can click on the BUY or RFQ button to purchase 65503503615308 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 65503503615308?
You can download the 65503503615308 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 65503503615308?
WURTH ELEKTRONIK
