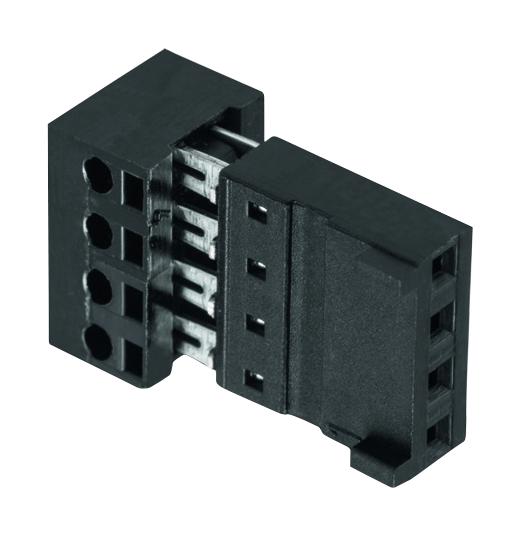

WURTH ELEKTRONIK 661004151922 Electrical Receptacle
This high-quality electrical receptacle is designed for general electronic equipment with a focus on safety and durability. Made with a PBT insulator and phosphor bronze contacts, it features tin plating for reliable connection and corrosion resistance. Suitable for stranded wires 24-22 AWG, it offers a current rating of 3 A and a working voltage of 50 VAC, with withstand voltage up to 500 VAC. Its compact design with 2.54 mm pin pitch ensures easy integration into various systems, meeting UL94V0 flammability standards and RoHS compliance, providing excellent electrical and mechanical performance in demanding environments.
WURTH ELEKTRONIK 661004151922 Electrical Receptacle Specifications:
- Material: Insulator - PBT, Metal - Phosphor bronze, Plating - Tin
- Color: Black
- Flammability Rating: UL94V0
- Operating Temperature: -40°C to +125°C
- Current Rating: 3 A
- Working Voltage: 50 VAC
- Withstanding Voltage: 500 VAC
- Insulation Resistance: >1000 MΩ
- Contact Resistance: 20 mΩ MAX
- Wire Compatibility: Stranded wire 24-22 AWG
- Physical Pitch: 2.54 mm
- Quality Class: 25 mating cycles
- Environmental compliance: RoHS and Lead-Free
- Insertion and extraction force: designed for durable operation
- Packaging: 2.54 mm tubes
Buy the Wurth Series Receptacle: 661004151922
Get your Wurth Series Receptacle 661004151922 today and experience reliable electrical connections in your device assemblies. Crafted from durable materials like PBT insulators and phosphor bronze contacts, this component offers impressive features like a current rating of 3 A and a working voltage of 50 VAC. With UL94V0 flammability compliance, RoHS adherence, and a compact 2.54 mm pitch, it’s ideal for various electronic applications demanding safety and durability. Buy online now and upgrade your projects with ease.
Order your Wurth Series Receptacle 661004151922 today and ensure robust, reliable connections for your electronic projects with confidence.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 661004151922?
You can click on the BUY or RFQ button to purchase 661004151922 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 661004151922?
You can download the 661004151922 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 661004151922?
WURTH ELEKTRONIK
