WURTH ELEKTRONIK 661010152022 Electronic Connector
This is a generic electronic connector designed for general electronics equipment with a plastic insulator made of PBT, environmentally friendly and RoHS compliant. It features a metal contact made of phosphor bronze with tin plating, rated for 3A current and 50VAC working voltage. The connector is rated for up to 125°C operating temperature, supports 28-26 AWG stranded wires, and offers 25 mating cycles. Its compact design includes a locking side and low contact resistance, making it reliable for various electronic applications requiring secure connections and durable performance.
WURTH ELEKTRONIK 661010152022 Electronic Connector Specifications:
- Insulator Material: PBT
- Flammability Rating: UL94V0
- Color: Black
- Contact Material: Phosphor Bronze
- Plating: Tin
- Current Rating: 3 A
- Working Voltage: 50 VAC
- Withstand Voltage: 500 VAC/min
- Insulation Resistance: >1000 MΩ
- Contact Resistance: 20 mΩ Max
- Operating Temperature: -40°C to +125°C
- Wire Range: 28-26 AWG
- Mating Cycles: 25
- Environmental Compliance: RoHS, Lead-Free
- Packaging: 2.54 Tubes
- Connection Type: Discrete wires, locking side
- Dimensions: Based on pin count and pitch, general tolerance ±0.2 mm
- Other features include compatibility with stranded wire, general tolerance projection, and suitability for various electronic assembly needs.

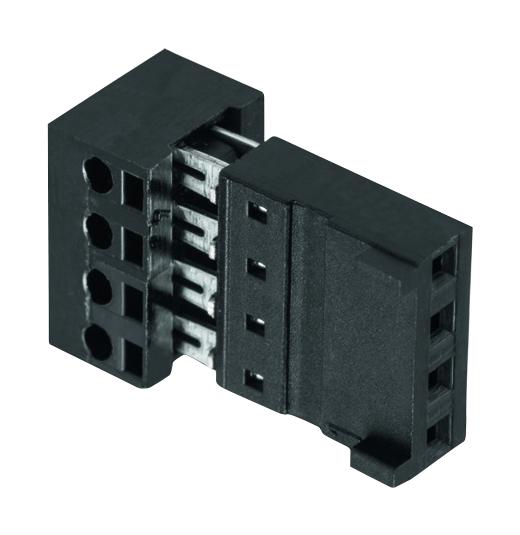

Buy the Buy Wurth Elektronik Connector Part Number 661010152022 Online
Purchase the Wurth Elektronik electronic connector part number 661010152022 online today. Designed for secure, durable connections in a variety of electronic equipment, it features a robust PBT insulator, phosphor bronze contacts with tin plating, and supports wire sizes from 28 to 26 AWG. With a rated current of 3A and insulation resistance exceeding 1000 MΩ, this connector is RoHS compliant and suitable for temperatures from -40°C to +125°C. Its compact design ensures reliable performance and easy integration into your electronic assemblies.
Get Wurth Elektronik 661010152022 today—engineered for reliable connections and long-lasting durability in electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 661010152022?
You can click on the BUY or RFQ button to purchase 661010152022 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 661010152022?
You can download the 661010152022 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 661010152022?
WURTH ELEKTRONIK
