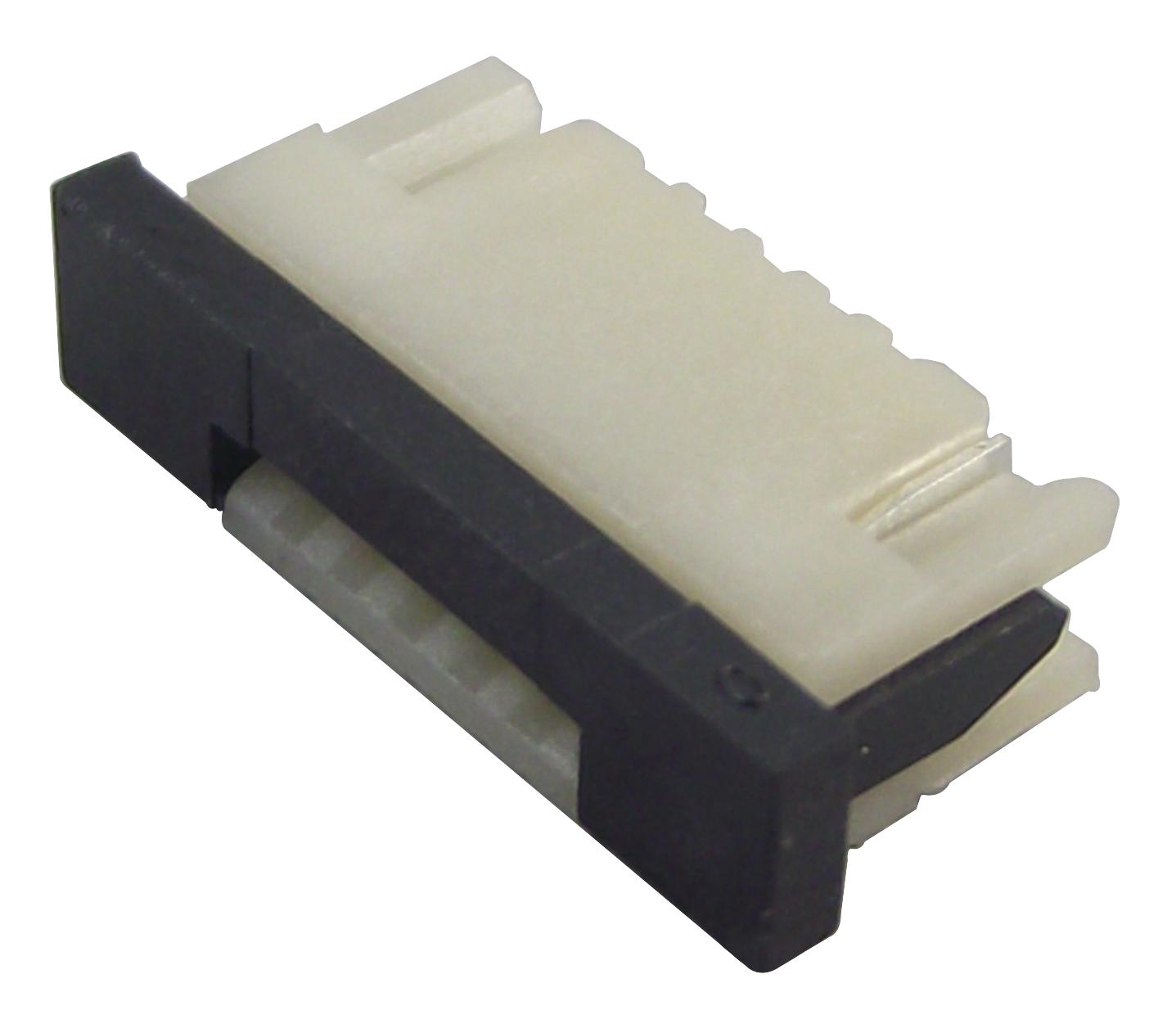

WURTH-ELEKTRONIK 68610514422 FPC Connector ZIF Horizontal
The Würth Elektronik 68610514422 is a ZIF (Zero Insertion Force) horizontal FPC (Flexible Printed Circuit) connector designed for secure and easy connection of flexible circuits. Constructed with a phosphor bronze contact material and tin plating, this connector provides excellent conductivity and corrosion resistance. It is suitable for a wide range of general electronic equipment applications, offering a reliable and convenient connection solution. The connector is RoHS compliant, ensuring environmental responsibility. Users are advised to consult Würth Elektronik's precaution guide for proper handling and usage.
WURTH-ELEKTRONIK 68610514422 FPC Connector ZIF Horizontal Specifications:
- Dimensions: 1 ±0.05 mm
- Recommended Land Pattern: 3.5 mm
- Pin to Pin (Middle): 4 mm
- Length (L): 12 mm
- Length (L1): 10 mm
- Length (L2): 6.1 mm
- Pitch (P): 1 mm
- Durability: 25 Mating cycles
- Insulator Material: PPS
- Insulator Flammability Rating: UL94 V-0
- Actuator Material: PPS
- Actuator Flammability Rating: UL94 V-0
- Contact Material: Phosphor Bronze
- Contact Plating: 100 (µ") Tin over 50 (µ") Nickel
- Contact Type: Stamped
- Operating Temperature: -25 up to +85 °C
- Rated Current: 1 A
- Working Voltage: 25 V (AC)
- Withstanding Voltage: 500 V (AC)
- Contact Resistance: 20 mΩ (max.)
- Insulation Resistance: 100 MΩ (min.)
- UL Approval: E323964
- Packaging: Tape and Reel
- Packaging Unit: 1500
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
