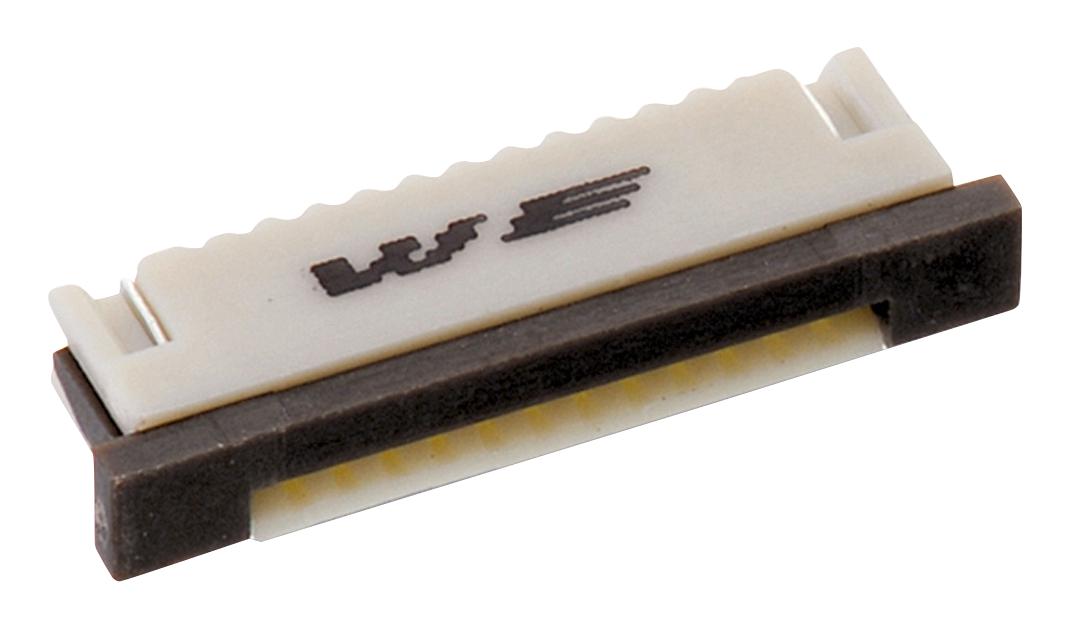

WURTH ELEKTRONIK 68612414422 SMT ZIF Connector
The WURTH ELEKTRONIK WR-FPC SMT ZIF Horizontal connector is designed for flexible flat cable (FFC) and flexible printed circuit (FPC) applications, offering reliable electrical connections with a bottom contact and a pitch of 1 mm. It features 24 pins, a pin-to-pin middle distance of 23 mm, and a durable design suitable for up to 25 mating cycles. Constructed with phosphor bronze contacts plated in tin over nickel, it supports operating temperatures from -25°C to +85°C. Packaged in tape and reel, it complies with UL94 V-0 flammability ratings and RoHS, REACH approvals, making it ideal for electronic device manufacturing requiring high safety standards.
WURTH ELEKTRONIK 68612414422 SMT ZIF Connector Specifications:
- Pin Count: 24
- Pin to Pin (Middle): 23 mm
- Length: 31 mm
- Operating Temperature Range: -25°C to +85°C
- Contact Material: Phosphor Bronze
- Contact Plating: Tin over Nickel
- Flammability Rating: UL94 V-0
- Certification: UL Approved, RoHS, REACH
- Packaging: Tape and Reel, 7500 units per reel
- Insulator Material: PPS
- Actuator Color: Black
- Insulator Color: Beige
- Rated Current: 1 A
- Working Voltage: 125 V
- Withstanding Voltage: 500 V
- Contact Resistance: Max 20 mΩ at 20 mm
- Insulation Resistance: Min 100 MΩ
- Durability: Up to 25 mating cycles
- Pitch: 1 mm
- Package Size: 340 mm x 340 mm x 255 mm
Buy the Buy WURTH ELEKTRONIK Connector Part Number 68612414422 Online
Order the WURTH ELEKTRONIK SMT ZIF Horizontal connector part number 68612414422 online today. This high-quality, 24-pin connector with 1 mm pitch offers excellent electrical performance, UL94 V-0 flammability rating, RoHS compliance, and reliability for a wide range of electronic applications. Designed with durable phosphor bronze contacts plated in tin over nickel, it supports up to 25 mating cycles, ensuring long-term connectivity. Perfect for FFC and FPC connections, it’s available in tape and reel packaging, ready to enhance your manufacturing process with high safety and efficiency.
Get WURTH ELEKTRONIK 68612414422 today—designed for reliable electronic connections, high safety standards, and long-lasting performance in your projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 68612414422?
You can click on the BUY or RFQ button to purchase 68612414422 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 68612414422?
You can download the 68612414422 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 68612414422?
WURTH ELEKTRONIK
