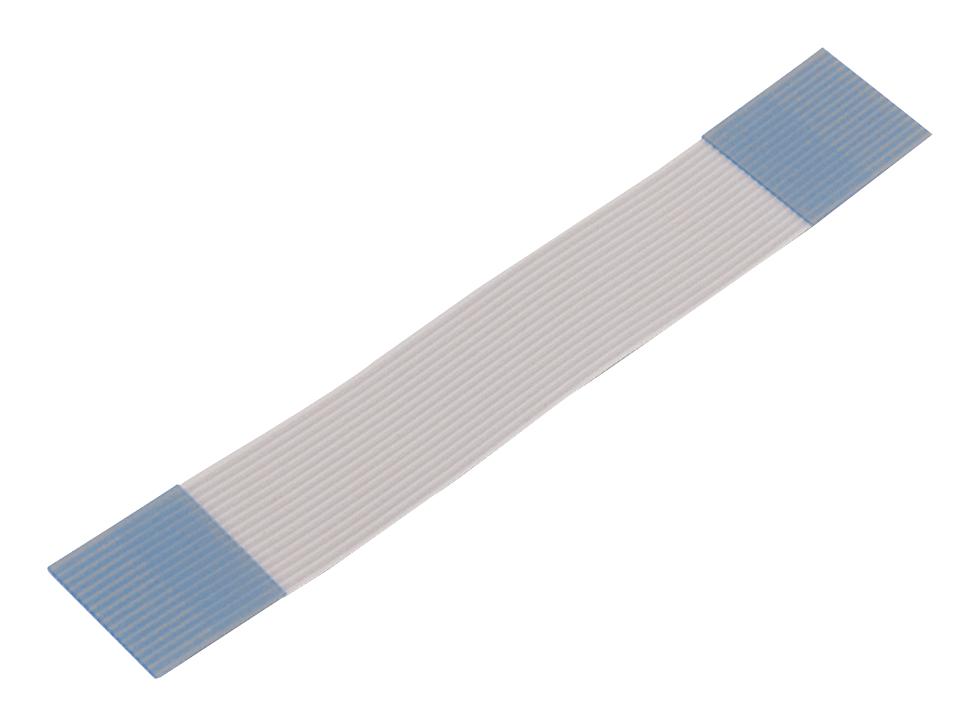

WURTH ELEKTRONIK 686604050001 Flat Flexible Cable
The WR-FFC Flat Flexible Cable is a highly flexible electrical connector designed for electronic equipment and flexible circuit applications. Made with PET insulator and copper conductors, it features tin-plated contacts for durability. Operating within -30°C to +105°C, it offers rated currents of 1A and a working voltage of 60V. The cable withstands moisture and heat resistance testing, complies with UL and REACH standards, and supports up to 20 mating cycles. Its compact dimensions and high durability make it ideal for modern electronic assemblies requiring reliable flexible interconnections, ensuring performance in demanding environments.
WURTH ELEKTRONIK 686604050001 Flat Flexible Cable Specifications:
- Operating Temperature: -30°C to +105°C
- Insulator Material: PET (White)
- Tape Material: PET (Blue)
- Contact Material: Copper
- Contact Plating: Tin
- Rated Current: 1 A max
- Working Voltage: 60 V
- Insulation Resistance: ≥ 1000 MΩ at 500 V (DC)
- Withstanding Voltage: 500 V AC for 1 min without breakdown
- Conductor Resistance: 1.09 Ω max
- Elongation of Insulator: ≥ 60%
- Tensile Strength: ≥ 35 N/mm²
- Flexing Test: 180° bend 20 times
- Abrasion Resistance: ≥ 10,000 cycles
- Durability: Rots approval, UL, REACH compliant, 20 mating cycles
- Package: Bag, temperature storage in original packaging within 12 months, no exposure to sunlight
Buy the Buy WURTH ELEKTRONIK Flat Flexible Cable Part Number 686604050001 Online
Secure your electronic assemblies with the WURTH ELEKTRONIK Flat Flexible Cable. Designed with PET insulation and copper conductors, this durable cable supports up to 20 mating cycles, operates from -30°C to +105°C, and complies with UL and REACH standards. Perfect for flexible circuit connections, it offers a rated current of 1A and a working voltage of 60V. Its compact size and high-quality materials ensure reliable performance in demanding environments. Order online today to upgrade your electronic projects with confidence.
Order your WURTH ELEKTRONIK Flat Flexible Cable Part Number 686604050001 today and enhance your electronic projects with reliable flexible interconnections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686604050001?
You can click on the BUY or RFQ button to purchase 686604050001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686604050001?
You can download the 686604050001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686604050001?
WURTH ELEKTRONIK
