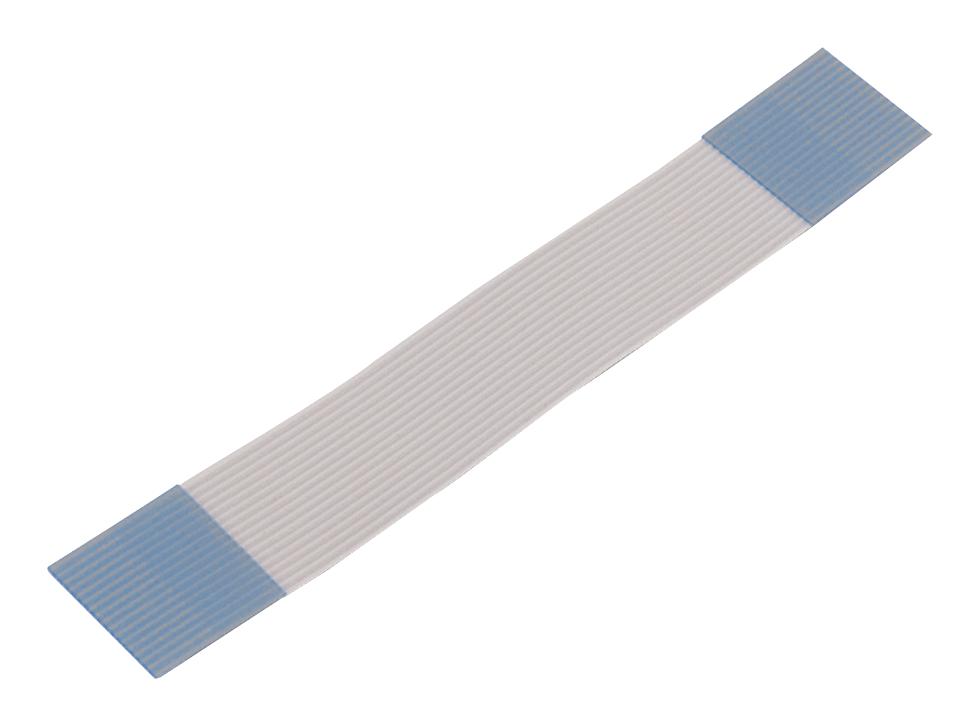

WURTH ELEKTRONIK 686604200001 Flat Flexible Cable
Würth Elektronik's WR-FFC Flat Flexible Cable Type 1, with a 1.00 mm pitch, is a high-quality ribbon cable designed for electronic equipment connections. Its PET insulation and copper contact material ensure durability, reliable electrical performance, and resistance to moisture and temperature variations. Suitable for signal transmission in industrial and consumer electronic devices, its flexible design allows easy routing in tight spaces. Certified for safety, compliance with UL, RoHS, and REACH standards, this cable offers excellent resistance to wear, abrasion, and heat up to 105°C, making it ideal for complex, reliable electronic systems.
WURTH ELEKTRONIK 686604200001 Flat Flexible Cable Specifications:
- Pitch P: 1 mm +0.08mm
- Total Pitch: 3 mm +0.1mm
- Length L: 200 mm ±5mm
- Width: 5 mm ±0.1mm
- Margin M: 1 mm ±0.12mm
- Conductor Width Cw: 0.7 mm ±0.03mm
- Conductor Thickness: 0.085 mm ±0.01mm
- Support Tape Length 1: 10 mm ±2mm
- Support Tape Length 2: 10 mm ±2mm
- Strip Length 1: 5 mm ±1mm
- Support Tape Thickness: 0.225 mm ±0.01mm
- Insulation Thickness: 0.043 mm 0.0mm
- Rated Current: 1 A max
- Working Voltage: 60 V
- Insulation Resistance: 1000 MΩ min at 500 V
- Withstanding Voltage: 500 V AC for 1 min without breakdown
- Conductor Resistance: 1.09 Ω max
- Contact Resistance: 20 mΩ max
- Operating Temperature Range: -30°C to +105°C
- Flex Test: 180° bend, 20 times
- Abrasion Resistance: 10,000 cycles
- Materials: Copper contacts, PET insulator and tape, UL and RoHS compliant
- Certifications: UL UL 758, RoHS, Reach
Buy the Würth Elektronik 686604200001 – Reliable Flat Flexible Cable for Industrial Applications
Order Würth Elektronik Flat Flexible Cable with 1.00 mm pitch and PET insulation today to ensure reliable, flexible connections in your electronic projects. Designed for durability, it withstands temperatures up to 105°C, resists abrasion and moisture, and complies with UL, RoHS, and REACH standards. This cable’s high-quality copper contacts and flexible design make installation easy in tight spaces, maximizing system reliability. Purchase online now for quick delivery and technical support to enhance your electronic system’s performance.
Get Würth Elektronik 686604200001 today—built for precise electronic connections in industrial environments.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686604200001?
You can click on the BUY or RFQ button to purchase 686604200001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686604200001?
You can download the 686604200001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686604200001?
WURTH ELEKTRONIK
